Belden 89880 0031640 50Ω, #12 Sol BC, FFEP Ins, Duobond IV® quad shield, PVDF Jkt, CMP
Ethernet 50 Ω 10BASE5, 12 AWG solid bare copper conductor, foam FEP insulation, Overall Duobond® II+Tinned Copper Braid (90%)+Duofoil®+Tinned Copper Braid(90%) Shield, fluorocopolymer jacket, CMP
Ordering Details
- Manufacturer Part Number: 89880 0031640
- Color: Orange
- Length: 1,640 ft
- Put-Up: Reel
- UPC/EAN: 612825221371
- Manufacturer Footnote: C Z
Supplied as one 1,640 ft Reel.

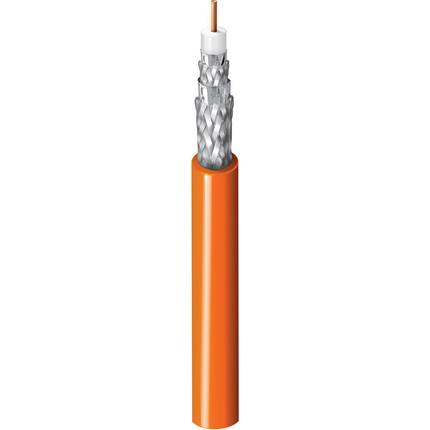

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Thick Ethernet (IEEE 802.3 10BASE5)
Construction Details
- Size: 12 AWG; Stranding: Solid; Nom. Diameter: 0.086 in; Material: BC - Bare Copper
- Material: FEP - Fluorinated Ethylene Propylene (Foam); Nom. Insulation Diameter: 0.245 in (6.22 mm); Color Code: Clear
- Layer: 1; Outer Shield Type: Tape; Material: Tri-Laminate (Alum+Poly+Alum); Material Trade Name: Duobond® II; Coverage: 100%
- Layer: 2; Outer Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 90%
- Layer: 3; Outer Shield Type: Tape; Material: Tri-Laminate (Alum+Poly+Alum); Material Trade Name: Duofoil®; Coverage: 100%
- Layer: 4; Outer Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 90%
- Material: PVDF - Polyvinylidene Fluoride; Nom. Diameter: 0.365 in (9.27 mm)
- Overall Cable Diameter (Nominal): 0.365 in (9.27 mm)
Electrical Characteristics
- Frequency: 1 MHz; Nom. Attenuation: 0.18 dB/100ft
- Frequency: 5 MHz; Nom. Attenuation: 0.37 dB/100ft
- Frequency: 10 MHz; Nom. Attenuation: 0.52 dB/100ft
- Frequency: 50 MHz; Nom. Attenuation: 1.15 dB/100ft
- Frequency: 100 MHz; Nom. Attenuation: 1.65 dB/100ft
- Frequency: 200 MHz; Nom. Attenuation: 2.45 dB/100ft
- Frequency: 400 MHz; Nom. Attenuation: 3.80 dB/100ft
- Frequency: 700 MHz; Nom. Attenuation: 5.60 dB/100ft
- Frequency: 900 MHz; Nom. Attenuation: 6.80 dB/100ft
- Frequency: 1000 MHz; Nom. Attenuation: 7.20 dB/100ft
- Frequency: 1 MHz; Max. Power Rating: 15,900 W
- Frequency: 5 MHz; Max. Power Rating: 6,928 W
- Frequency: 10 MHz; Max. Power Rating: 4,802 W
- Frequency: 50 MHz; Max. Power Rating: 1,992 W
- Frequency: 100 MHz; Max. Power Rating: 1,344 W
- Frequency: 200 MHz; Max. Power Rating: 900 W
- Frequency: 400 MHz; Max. Power Rating: 602 W
- Frequency: 700 MHz; Max. Power Rating: 438 W
- Frequency: 900 MHz; Max. Power Rating: 382 W
- Frequency: 1,000 MHz; Max. Power Rating: 361 W
- Nom. Conductor DCR: 1.4 Ohm/1000ft; Nom. Outer Shield DCR: 1.5 Ohm/1000ft (4.9 Ohm/km); Nom. Capacitance Cond-to-Shield: 26.0 pF/ft (85.3 pF/m); Nom. Characteristic Impedance: 50 Ohm; Nom. Velocity of Prop.: 78%
- UL Voltage Rating: 300 V (CMP); Voltage Rating: 600 V
Mechanical Characteristics
- UL Temperature: 150°C; Operating: -25°C to +150°C
- Installation Min.: 6.0 in (150 mm)
- Max. Pull Tension: 255 lbs (116 kg)
- Bulk Cable Weight: 137 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor - Plenum, Indoor
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: NFPA 262
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: CL2P, CMP
- CEC / C(UL) Compliance: CMP
- IEEE Compliance: IEEE 802.3 10Base5
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Other Standard Compliance(s): DEC Part No. 17-00324-00
- Non-Plenum Number: 9880
Product Notes
- Notes: Ring-band stripes every 2.5 meters to aid users in tap placement.
History
- Update and Revision: Revision Number: 0.501 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
