Description
Belden 89734 008500 RS232/422 Low Cap, #24-12pr, FFEP, Indiv. Foil, PVDF Jkt, CMP, 100Ω
Computer EIA RS-232/422, Digital Audio Cable, 12-Pair, 24 AWG stranded (7x32) tinned copper conductor, foam FEP insulation, individually shielded pairs with Beldfoil® (100% coverage), 24 AWG stranded tinned copper drain wire, overall fluorocopolymer jacket, plenum rated
Ordering Details
- Manufacturer Part Number: 89734 008500
- Color: Gray
- UPC/EAN: 612825221210
- Manufacturer Footnote: C

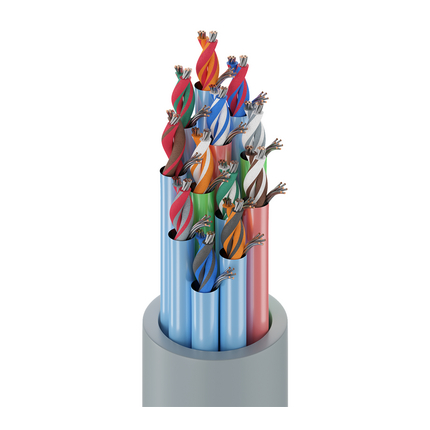

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: extreme high temperature environments; RS-232 extended distance applications; RS-422 applications; computer communication; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); digital audio; panel wiring
Construction Details
- Element: Pair(s); No. of Elements: 12; Size: 24 AWG; Stranding: 7x32; Material: TC - Tinned Copper
- Element: Pair(s); Material: FEP - Fluorinated Ethylene Propylene (Foam); Nom. Thickness: 0.019 in (0.48 mm); Nom. Insulation Diameter: 0.062 in (1.6 mm); Color Code: Western Electric Standard
- Element: Pair(s); Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 24 AWG (7x32) TC; Notes: each pair
- Material: PVDF - Polyvinylidene Fluoride; Nom. Thickness: 0.019 in (0.48 mm); Nom. Diameter: 0.498 in (12.6 mm)
- Overall Cable Diameter (Nominal): 0.498 in (12.6 mm)
Electrical Characteristics
- Element: Pair(s); Nom. Conductor DCR: 28.8 Ohm/1000ft; Nom. Inner Shield DCR: 16.19 Ohm/1000ft (53.12 Ohm/km); Nom. Capacitance Cond-to-Cond: 13.5 pF/ft (44.3 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 22.5 pF/ft (73.8 pF/m); Nom. Characteristic Impedence: 100 Ohm; Nom. Delay: 1.3 ns/ft; Nom. Inductance: 0.24 µH/ft (0.79 µH/m); Nom. Velocity of Prop.: 76%; Max. Current: 1.96 Amps per Conductor at 25ºC
- Frequency [MHz]: 0.384; Nom. Insertion Loss (Attenuation): 0.74 dB/100ft
- Frequency [MHz]: 0.7056; Nom. Insertion Loss (Attenuation): 0.87 dB/100ft
- Frequency [MHz]: 0.768; Nom. Insertion Loss (Attenuation): 0.89 dB/100ft
- Frequency [MHz]: 1.024; Nom. Insertion Loss (Attenuation): 0.95 dB/100ft
- Frequency [MHz]: 1.4112; Nom. Insertion Loss (Attenuation): 1.03 dB/100ft
- Frequency [MHz]: 1.536; Nom. Insertion Loss (Attenuation): 1.06 dB/100ft
- Frequency [MHz]: 2.048; Nom. Insertion Loss (Attenuation): 1.17 dB/100ft
- Frequency [MHz]: 2.28224; Nom. Insertion Loss (Attenuation): 1.37 dB/100ft
- Frequency [MHz]: 3.072; Nom. Insertion Loss (Attenuation): 1.44 dB/100ft
- Frequency [MHz]: 4.096; Nom. Insertion Loss (Attenuation): 1.67 dB/100ft
- Frequency [MHz]: 5.6448; Nom. Insertion Loss (Attenuation): 1.89 dB/100ft
- Frequency [MHz]: 6.144; Nom. Insertion Loss (Attenuation): 1.96 dB/100ft
- Frequency [MHz]: 8.192; Nom. Insertion Loss (Attenuation): 2.26 dB/100ft
- Frequency [MHz]: 11.2896; Nom. Insertion Loss (Attenuation): 2.59 dB/100ft
- Frequency [MHz]: 12.288; Nom. Insertion Loss (Attenuation): 2.71 dB/100ft
- Frequency [MHz]: 24.576; Nom. Insertion Loss (Attenuation): 3.73 dB/100ft
- UL Voltage Rating: 300 V (CMP)
Mechanical Characteristics
- UL Temperature: 150°C; Operating: -40°C to +150°C
- Stationary Min.: 5.0 in (130 mm); Installation Min.: 5.0 in (130 mm)
- Max. Pull Tension: 137.5 lbs (62.37 kg)
- Bulk Cable Weight: 124 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor
- Flammability / Reaction to Fire: NFPA 262 (UL910), FT6
- NEC / UL Compliance: Article 800, CMP
- CEC / C(UL) Compliance: CMP
- European Directive Compliance: EU CE Mark, REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Non-Plenum Number: 9734
History
- Update and Revision: Revision Number: 0.473 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
