Belden 89705 0081000 RS232/422 Low Cap, #24-5pr, FFEP, Indiv. Foil, PVDF Jkt, CMP, 100Ω - Gray

$27,824.99
SKU:
89705 0081000
Shipping:
Calculated at Checkout
Color:
Gray
Manufacturer Status:
Active
Product Family:
89705
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

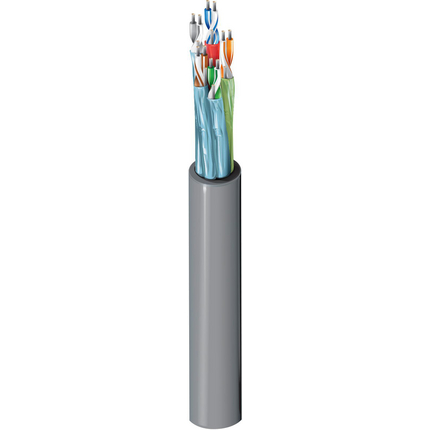

Belden 89705 0081000 RS232/422 Low Cap, #24-5pr, FFEP, Indiv. Foil, PVDF Jkt, CMP, 100Ω

Computer EIA RS-232/422, Digital Audio Cable, 5-Pair, 24 AWG stranded (7x32) tinned copper conductor, foam FEP insulation, individually shielded pairs with Beldfoil® (100% coverage), 24 AWG stranded tinned copper drain wire, overall fluorocopolymer jacket, plenum rated

Ordering Details

  • Manufacturer Part Number: 89705 0081000
  • Color: Gray
  • UPC/EAN: 612825221098
  • Manufacturer Footnote: C

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: extreme high temperature environments; RS-232 extended distance applications; RS-422 applications; computer communication; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); digital audio; panel wiring

Construction Details

  • Element: Pair(s); No. of Elements: 5; Size: 24 AWG; Stranding: 7x32; Material: TC - Tinned Copper
  • Element: Pair(s); Material: FEP - Fluorinated Ethylene Propylene (Foam); Nom. Thickness: 0.019 in (0.48 mm); Color Code: White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe, White/Green Stripe & Green/White Stripe, White/Brown Stripe & Brown/White Stripe, White/Gray Stripe & Gray/White Stripe
  • Color Code: Red, Green, Blue
  • Element: Pair(s); Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 24 AWG (7x32) TC; Notes: each pair
  • Material: PVDF - Polyvinylidene Fluoride; Nom. Thickness: 0.014 in (0.36 mm); Nom. Diameter: 0.327 in (8.31 mm)
  • Overall Cable Diameter (Nominal): 0.327 in (8.31 mm)

Electrical Characteristics

  • Element: Pair(s); Nom. Conductor DCR: 24 Ohm/1000ft (79 Ohm/km); Nom. Capacitance Cond-to-Cond: 13.5 pF/ft (44.3 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 22.5 pF/ft (73.8 pF/m); Nom. Characteristic Impedence: 100 Ohm; Nom. Delay: 1.3 ns/ft; Nom. Inductance: 0.24 µH/ft (0.79 µH/m); Nom. Velocity of Prop.: 76%; Max. Current: 2 Amps per Conductor at 25ºC
  • Frequency: 0.384 MHz; Nom. Insertion Loss (Attenuation) [dB/100ft]: 0.74
  • Frequency: 0.7056 MHz; Nom. Insertion Loss (Attenuation) [dB/100ft]: 0.87
  • Frequency: 0.768 MHz; Nom. Insertion Loss (Attenuation) [dB/100ft]: 0.89
  • Frequency: 1.024 MHz; Nom. Insertion Loss (Attenuation) [dB/100ft]: 0.95
  • Frequency: 1.4112 MHz; Nom. Insertion Loss (Attenuation) [dB/100ft]: 1.03
  • Frequency: 1.536 MHz; Nom. Insertion Loss (Attenuation) [dB/100ft]: 1.06
  • Frequency: 2.048 MHz; Nom. Insertion Loss (Attenuation) [dB/100ft]: 1.17
  • Frequency: 2.8224 MHz; Nom. Insertion Loss (Attenuation) [dB/100ft]: 1.37
  • Frequency: 3.072 MHz; Nom. Insertion Loss (Attenuation) [dB/100ft]: 1.44
  • Frequency: 4.096 MHz; Nom. Insertion Loss (Attenuation) [dB/100ft]: 1.67
  • Frequency: 5.6448 MHz; Nom. Insertion Loss (Attenuation) [dB/100ft]: 1.89
  • Frequency: 6.144 MHz; Nom. Insertion Loss (Attenuation) [dB/100ft]: 1.96
  • Frequency: 8.192 MHz; Nom. Insertion Loss (Attenuation) [dB/100ft]: 2.26
  • Frequency: 11.2896 MHz; Nom. Insertion Loss (Attenuation) [dB/100ft]: 2.59
  • Frequency: 12.288 MHz; Nom. Insertion Loss (Attenuation) [dB/100ft]: 2.71
  • Frequency: 24.576 MHz; Nom. Insertion Loss (Attenuation) [dB/100ft]: 3.73
  • UL Voltage Rating: 300 V (CMP)

Mechanical Characteristics

  • UL Temperature: 150°C; Operating: -40°C to +150°C
  • Max. Pull Tension: 165 lbs (74.8 kg)
  • Bulk Cable Weight: 53 lbs/1000ft (79 kg/km)

Standards and Compliance

  • Environmental Suitability: Indoor
  • Flammability / Reaction to Fire: NFPA 262 Plenum Flame Test (UL910)
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 800, CMP
  • CEC / C(UL) Compliance: CMP
  • European Directive Compliance: EU CE Mark, REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.331 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.
