Belden 8918 189100 Lead Wire, #18 Str TC, PVC Ins, AWM 1015 AWM 1230
Low Temp Plastic Lead Wire, 18AWG (16x30) Tinned Copper, PVC Insulation, AWM 1015 AWM 1230 CSA TYPE TEW JQA-F 600V 105C
Ordering Details
- Manufacturer Part Number: 8918 189100
- Color: Green, Yellow Stripe
- Length: 100 ft
- Put-Up: Reel
- UPC/EAN: 612825220107
- Manufacturer Footnote: A
Supplied as one 100 ft Reel.

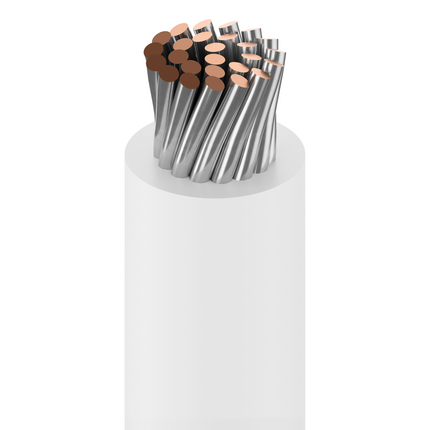

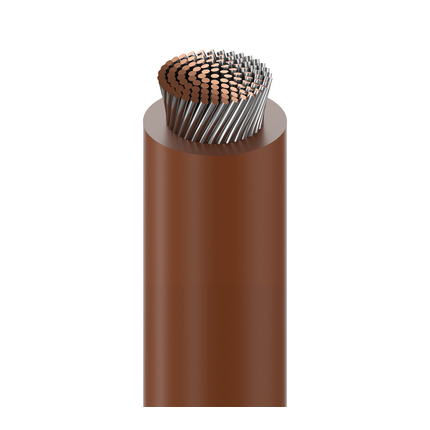

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: inter-connection circuits, internal wiring of computer and electronic equipments, internal wiring of appliances, machine tool wire
Construction Details
- Element: Conductor(s); No. of Elements: 1; Size: 18 AWG; Stranding: 16x30; Material: TC - Tinned Copper
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.033 in (0.84 mm); Nom. Insulation Diameter: 0.11 in (2.8 mm)
- Overall Cable Diameter (Nominal): 0.11 in (2.8 mm)
Electrical Characteristics
- Nom. Conductor DCR: 6.5 Ohm/1000ft; Max. Current: Single conductor in free air @ 30ºC: 20 A
- UL Voltage Rating: 600 V RMS
Mechanical Characteristics
- UL Temperature: 105°C; Operating: -30°C To +105°C
- Stationary Min.: 1.1 in (28 mm); Installation Min.: 1.1 in (28 mm)
- Max. Pull Tension: 27 lbs (12 kg)
- Bulk Cable Weight: 10 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor, Outdoor
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: VW-1
- NEC / UL Compliance: Article 310, MTW
- AWM Compliance: AWM 1015, AWM 1230, CSA AWM I A/B
- CEC / C(UL) Compliance: TEW
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.489 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP., P - STRIPE COLORS ON STOCK SOLID COLORS. STRIPING ADDER OF $8.00/M= FOR 1 OR 2 STRIPES. 10,000' MINIMUM ORDER FOR COLOR COMBINATION. PUT-UP WILL BE SUBJECT TO TWO PIECES (+ OR -) 10% PER SPOOL, WITH A MINIMUM LENGTH OF 100'., A - STOCKED STRIPE COLORS.
