Description
Belden 8908 001250 Lead Wire, #8 Str TC, PVC Ins, AWM 1028 AWM 1015 AWM 1231
Low Temp Plastic Lead Wire, 8AWG (133x29) Tinned Copper, PVC Insulation, AWM 1028 AWM 1015 AWM 1231 CSA TYPE TEW 600V 105C
Ordering Details
- Manufacturer Part Number: 8908 001250
- Color: Brown
- Length: 250 ft
- Put-Up: Reel
- UPC/EAN: 612825217831
Supplied as one 250 ft Reel.

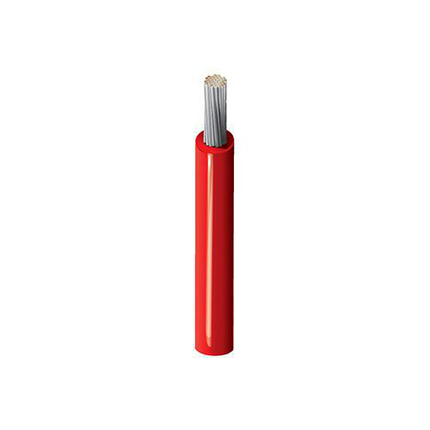

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: inter-connection circuits, internal wiring of computer and electronic equipments, internal wiring of appliances, machine tool wire
Construction Details
- Element: Conductor(s); No. of Elements: 1; Size: 8; Stranding: 133x29; Material: TC - Tinned Copper
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.048 in (1.2 mm); Nom. Insulation Diameter: 0.262 in (6.65 mm)
- Overall Cable Diameter (Nominal): 0.262 in (6.65 mm)
Electrical Characteristics
- UL Voltage Rating: 600 V RMS
Mechanical Characteristics
- UL Temperature: 105°C
- Stationary Min.: 1.05 in (26.7 mm); Installation Min.: 1.05 in (26.7 mm)
- Max. Pull Tension: 213 lbs (96.6 kg)
- Bulk Cable Weight: 74 lbs/1000ft
Standards and Compliance
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: VW-1
- NEC / UL Compliance: Article 310, MTW or TW
- AWM Compliance: AWM 1015, AWM 1028, AWM 1231, CSA AWM I A/B
- CEC / C(UL) Compliance: TEW
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
History
- Update and Revision: Revision Number: 0.452 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP.
