Description
Belden 8898 010100 Lead Wire, #18 Str TC, EPDM Ins
Low Temp Rubber Lead Wire, 18AWG (65x36) Tinned Copper, EPDM Insulation, 10000V 90C
Ordering Details
- Manufacturer Part Number: 8898 010100
- Color: Black
- Length: 100 ft
- Put-Up: Reel
- UPC/EAN: 612825217619
Supplied as one 100 ft Reel.

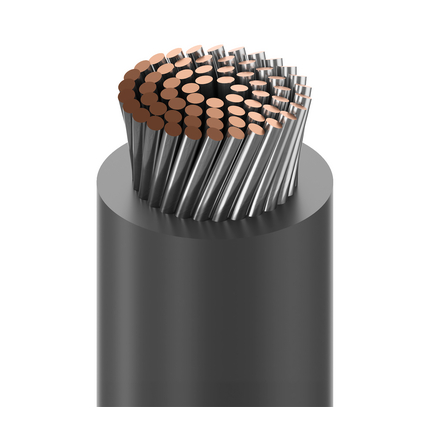

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: used as test probe lead for electrical and electronic measuring for test equipment
Construction Details
- Element: Conductor(s); No. of Elements: 1; Size: 18 AWG; Stranding: 65x36; Material: TC - Tinned Copper
- Material: EPDM - Ethylene Propylene Diene Monomer; Nom. Thickness: 0.091 in (2.3 mm); Nom. Insulation Diameter: 0.229 in (5.82 mm)
- Overall Cable Diameter (Nominal): 0.229 in (5.82 mm)
Electrical Characteristics
- Nom. Conductor DCR: 2.25 Ohm/1000ft; Max. Current: Single conductor in free air @ 30ºC: 62.0 A
- Voltage Rating: 10,000 V; Breakdown Voltage: 29,000 V
Mechanical Characteristics
- UL Temperature: 80°C; Operating: -40°C To +80°C
- Stationary Min.: 2.29 in (58.2 mm); Installation Min.: 2.29 in (58.2 mm)
- Max. Pull Tension: 83 lbs (38 kg)
- Bulk Cable Weight: 31 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Outdoor
- Sustainability: CA Prop 65
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
Product Notes
- Notes: 29000 V Breakdown
History
- Update and Revision: Revision Number: 0.474 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP.
