Belden 8870MN 008100 SpaceMaker™, 5 C #18 Str TC, PO Ins, OS, PVC Jkt, AWM 2937 - Gray, 100 ft Reel

$469.99
SKU:
8870MN 008100
Shipping:
Calculated at Checkout
Color:
Gray
Length:
100 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
8870MN
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 8870MN 008100 SpaceMaker™, 5 C #18 Str TC, PO Ins, OS, PVC Jkt, AWM 2937

SpaceMaker™, 5 Conductor 18AWG (41x34) Tinned Copper, PO Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, AWM 2937

Ordering Details

  • Manufacturer Part Number: 8870MN 008100
  • Color: Gray
  • Length: 100 ft
  • Put-Up: Reel
  • UPC/EAN: 612825390886

Supplied as one 100 ft Reel.

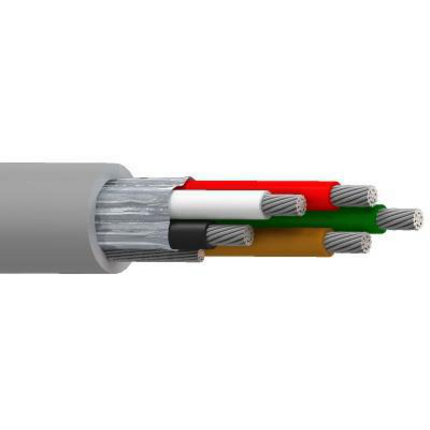

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Construction Details

  • Element: Conductor(s); No. of Elements: 5; Size: 18 AWG; Stranding: 41x34; Material: TC - Tinned Copper
  • Element: Conductor(s); Material: PP - Polypropylene; Nom. Thickness: 0.010 in (0.25 mm); Nom. Insulation Diameter: 0.067 in (1.7 mm); Color Code: Black, White, Red, Dark Green, Brown
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 18 AWG (19x30H) TC
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.016 in (0.41 mm); Nom. Diameter: 0.217 in
  • Overall Cable Diameter (Nominal): 0.217 in.

Electrical Characteristics

  • Nom. Conductor DCR: 7.06 Ohm/1000ft; Max. Current: 4 Amps per Conductor at 25ºC
  • Nom Outer Shield DCR: 5.3 Ohm/1000ft (17 Ohm/km)
  • UL Voltage Rating: 300 V

Mechanical Characteristics

  • UL Temperature: 80°C
  • Stationary Min.: 0.868 in (22.0 mm); Installation Min.: 0.868 in
  • Max. Pull Tension: 127.2 lbs (57.70 kg)
  • Bulk Cable Weight: 42 lbs/1000ft

Standards and Compliance

  • Flammability / Reaction to Fire: FT2
  • AWM Compliance: AWM 2937
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.195 Revision Date: 09-07-2025

Resources

Belden 8870MN Product Information
