Belden 88641 002100 Electronic, 2 C #24 Str TC, FEP Ins, OS, FEP Jkt, CMP - Red, 100 ft Reel

$625.99
SKU:
88641 002100
Shipping:
Calculated at Checkout
Color:
Red
Length:
100 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
88641
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 88641 002100 Electronic, 2 C #24 Str TC, FEP Ins, OS, FEP Jkt, CMP

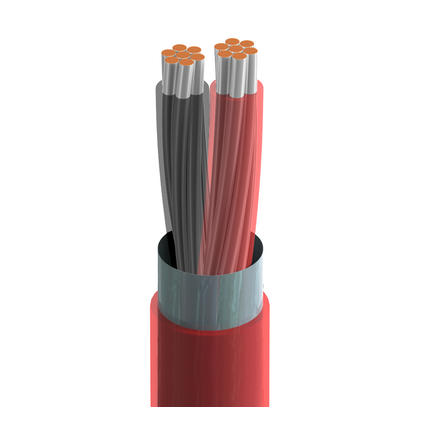

High Temperature Electronic, 2 Conductor 24AWG (7x32) Tinned Copper, FEP Insulation, Overall Beldfoil® Shield, FEP Outer Jacket, CMP

Ordering Details

  • Manufacturer Part Number: 88641 002100
  • Color: Red
  • Length: 100 ft
  • Put-Up: Reel
  • UPC/EAN: 612825217053

Supplied as one 100 ft Reel.

Product Overview

  • Suitable Applications: extreme high/low temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; voice communications; panel wiring

Construction Details

  • Element: Pair(s); No. of Elements: 1; Size: 24 AWG; Stranding: 7x32; Material: TC - Tinned Copper
  • Element: Pair(s); Material: FEP - Fluorinated Ethylene Propylene; Nom. Thickness: 0.006 in (0.15 mm); Nom. Insulation Diameter: 0.036 in (0.91 mm); Color Code: Black & Red
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 24 AWG (7x32) TC
  • Material: FEP - Fluorinated Ethylene Propylene; Nom. Thickness: 0.015 in (0.38 mm); Nom. Diameter: 0.106 in (2.69 mm)
  • Overall Cable Diameter (Nominal): 0.106 in (2.69 mm)

Electrical Characteristics

  • Element: Pair(s); Nom. Conductor DCR: 28.8 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 31 pF/ft (100 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 59 pF/ft (190 pF/m); Nom. Inductance: 0.17 µH/ft (0.56 µH/m); Max. Current: 3.8 Amps per Conductor at 30ºC
  • Nom Outer Shield DCR: 18.38 Ohm/1000ft (60.30 Ohm/km)
  • UL Voltage Rating: 300 V (CMP)

Mechanical Characteristics

  • UL Temperature: 150°C; Operating: -20°C to +150°C
  • Stationary Min.: 1.1 in (28 mm); Installation Min.: 1.1 in (28 mm)
  • Max. Pull Tension: 16.5 lbs (7.48 kg)
  • Bulk Cable Weight: 10 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor, Oil Resistance, Burial
  • Sustainability: CA Prop 65
  • Flammability / Reaction to Fire: NFPA 262, UL 910 (Plenum), IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 800, CMP
  • CEC / C(UL) Compliance: CMP
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Plenum Number: 82641
  • Non-Plenum Number: 8641

History

  • Update and Revision: Revision Number: 0.523 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.
