Belden 88240 0101000 50 Ohm Wireless Transmission Coax, RG-58, 20 AWG Solid BC, 95% TC Braid, FEP Jkt, CMP - Black, 1,000 ft Reel

$4,698.99
SKU:
88240 0101000
Shipping:
Calculated at Checkout
Color:
Black
Length:
1,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
88240
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 88240 0101000 50 Ohm Wireless Transmission Coax, RG-58, 20 AWG Solid BC, 95% TC Braid, FEP Jkt, CMP

50 Ohm Wireless Transmission Coax, RG-58, 20 AWG Solid Bare Copper Conductor , FEP Insulation, 95% Tinned Copper Braid Shield, FEP Jacket, CMP

Ordering Details

  • Manufacturer Part Number: 88240 0101000
  • Color: Black
  • Length: 1,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825216919
  • Manufacturer Footnote: C

Supplied as one 1,000 ft Reel.

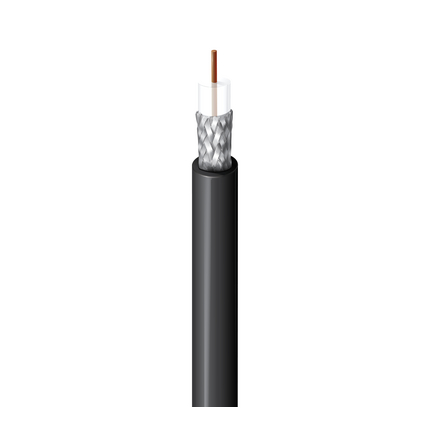

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification)

Construction Details

  • RG Type: 58
  • Size: 20 AWG; Stranding: Solid; Nom. Diameter: 0.032 in; Material: BC - Bare Copper
  • Material: FEP - Fluorinated Ethylene Propylene; Nom. Insulation Diameter: 0.107 in (2.72 mm); Color Code: Clear
  • Outer Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 95%
  • Material: FEP - Fluorinated Ethylene Propylene; Nom. Diameter: 0.159 in (4.04 mm)
  • Overall Cable Diameter (Nominal): 0.159 in (4.04 mm)

Electrical Characteristics

  • Frequency: 1 MHz; Nom. Attenuation: 0.5 dB/100ft
  • Frequency: 10 MHz; Nom. Attenuation: 1.2 dB/100ft
  • Frequency: 50 MHz; Nom. Attenuation: 3.0 dB/100ft
  • Frequency: 100 MHz; Nom. Attenuation: 4.3 dB/100ft
  • Frequency: 200 MHz; Nom. Attenuation: 6.4 dB/100ft
  • Frequency: 400 MHz; Nom. Attenuation: 9.7 dB/100ft
  • Frequency: 700 MHz; Nom. Attenuation: 13.7 dB/100ft
  • Frequency: 900 MHz; Nom. Attenuation: 16.1 dB/100ft
  • Frequency: 1000 MHz; Nom. Attenuation: 17.3 dB/100ft
  • Frequency: 1 MHz; Max. Power Rating: 4,799 W
  • Frequency: 10 MHz; Max. Power Rating: 1,937 W
  • Frequency: 50 MHz; Max. Power Rating: 782 W
  • Frequency: 100 MHz; Max. Power Rating: 542 W
  • Frequency: 200 MHz; Max. Power Rating: 370 W
  • Frequency: 400 MHz; Max. Power Rating: 249 W
  • Frequency: 700 MHz; Max. Power Rating: 178 W
  • Frequency: 900 MHz; Max. Power Rating: 153 W
  • Frequency: 1,000 MHz; Max. Power Rating: 143 W
  • Nom. Conductor DCR: 10.1 Ohm/1000ft; Nom. Outer Shield DCR: 3.8 Ohm/1000ft (12 Ohm/km); Nom. Capacitance Cond-to-Shield: 27.4 pF/ft (89.9 pF/m); Nom. Characteristic Impedance: 53 Ohm; Nom. Velocity of Prop.: 70%
  • UL Voltage Rating: 300 V (CMP)

Mechanical Characteristics

  • UL Temperature: 200°C; Operating: -70°C to +200°C
  • Installation Min.: 2.0 in (51 mm)
  • Max. Pull Tension: 47 lbs (21 kg)
  • Bulk Cable Weight: 21 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor - Plenum, Indoor, Outdoor, UV Resistance, Aerial - When supported by messenger wire
  • Sustainability: CA Prop 65
  • Flammability / Reaction to Fire: NFPA 262
  • NEC / UL Compliance: CMP
  • CEC / C(UL) Compliance: CMP
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Non-Plenum Number: 8240

History

  • Update and Revision: Revision Number: 0.530 Revision Date: 02-20-2026
  • Footnote: C - CRATE REEL PUT-UP.

Resources

Belden 88240 Product Information
