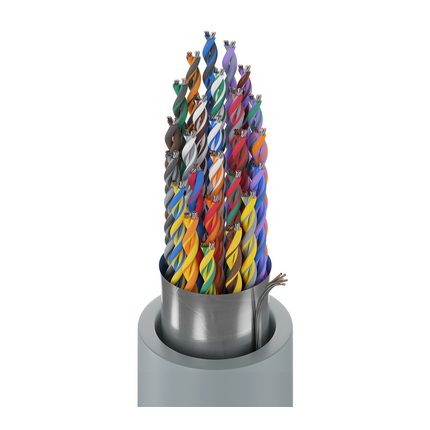

Belden 88125 008500 RS232/422 Low Cap, #24-25pr, FFEP, O/A Foil, PVDF Jkt, CMP, 100Ω
Computer EIA RS-232/422 Cable, 25-Pair, 24 AWG stranded (7x32) tinned copper conductors, foam FEP insulation, overall Beldfoil® shield (100% coverage), 24 AWG stranded tinned copper drain wire, fluorocopolymer jacket, plenum rated
Ordering Details
- Manufacturer Part Number: 88125 008500
- Color: Gray
- UPC/EAN: 612825216841
- Manufacturer Footnote: C Z
Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: extreme high temperature environments; rs-232 extended distance applications; rs-422 applications; computer communication; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring
Construction Details
- Element: Pair(s); No. of Elements: 25; Size: 24 AWG; Stranding: 7x32; Material: TC - Tinned Copper
- Element: Pair(s); Material: FEP - Fluorinated Ethylene Propylene (Foam); Nom. Thickness: 0.015 in (0.38 mm); Color Code: White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe, White/Green Stripe & Green/White Stripe, White/Brown Stripe & Brown/White Stripe, White/Gray Stripe & Gray/White Stripe, Red/Blue Stripe & Blue/Red Stripe, Red/Orange Stripe & Orange/Red Stripe, Red/Green Stripe & Green/Red Stripe, Red/Brown Stripe & Brown/Red Stripe, Red/Gray Stripe & Gray/Red Stripe, Black/Blue Stripe & Blue/Black Stripe, Black/Orange Stripe & Orange/Black Stripe, Black/Green Stripe & Green/Black Stripe, Black/Brown Stripe & Brown/Black Stripe, Black/Gray Stripe & Gray/Black Stripe, Yellow/Blue Stripe & Blue/Yellow Stripe, Yellow/Orange Stripe & Orange/Yellow Stripe, Yellow/Green Stripe & Green/Yellow Stripe, Yellow/Brown Stripe & Brown/Yellow Stripe, Yellow/Gray Stripe & Gray/Yellow Stripe, Purple/Blue Stripe & Blue/Purple Stripe, Purple/Orange Stripe & Orange/Purple Stripe, Purple/Green Stripe & Green/Purple Stripe, Purple/Brown Stripe & Brown/Purple Stripe, Purple/Gray Stripe & Gray/Purple Stripe
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 24 AWG (7x32) TC
- Material: PVDF - Polyvinylidene Fluoride; Nom. Thickness: 0.019 in (0.48 mm); Nom. Diameter: 0.581 in (14.8 mm)
- Overall Cable Diameter (Nominal): 0.581 in (14.8 mm)
Electrical Characteristics
- Element: Pair(s); Nom. Conductor DCR: 24 Ohm/1000ft (79 Ohm/km); Nom. Capacitance Cond-to-Cond: 12.95 pF/ft (42.49 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 23.3 pF/ft (76.4 pF/m); Nom. Characteristic Impedence: 100 Ohm; Nom. Delay: 1.3 ns/ft; Nom. Inductance: 0.21 µH/ft (0.69 µH/m); Nom. Velocity of Prop.: 78%; Max. Current: 1.1 Amps per Conductor at 25ºC
- Nom Outer Shield DCR: 9.6 Ohm/1000ft (31 Ohm/km)
- UL Voltage Rating: 300 V (CMP)
Mechanical Characteristics
- UL Temperature: 150°C; Operating: -20°C to +150°C
- Stationary Min.: 5.8 in (150 mm); Installation Min.: 5.8 in (150 mm)
- Max. Pull Tension: 280 lbs (130 kg)
- Bulk Cable Weight: 179 lbs/1000ft (266 kg/km)
Standards and Compliance
- Environmental Suitability: Indoor
- Flammability / Reaction to Fire: NFPA 262 Plenum Flame Test (UL910)
- NEC / UL Compliance: Article 800, CMP
- CEC / C(UL) Compliance: CMP
- European Directive Compliance: EU CE Mark, REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.397 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
