Description

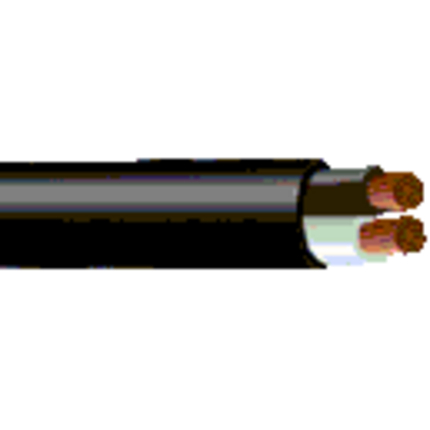

Belden 8808 0101000 Speaker Cable, 1 Pair 8 AWG BC, Unshielded
8 AWG (19x21) bare copper conductors, PVC/nylon insulated, twisted pair, unshielded, PVC jacket, rip cord
Ordering Details
- Manufacturer Part Number: 8808 0101000
- Color: Black
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825408895
Supplied as one 1,000 ft Reel.
Product Overview
- Suitable Applications: Auditorium, Stadium, Race Track, Church, Temple, Synagogue, Place Of Assembly, Casino, Sound
Construction Details
- Size: 8; Stranding: 19x21.5; Material: BC - Bare Copper
- Material: PVC - Polyvinyl Chloride
- Material: Nylon
- Material: No Shield
- Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.57 in
Electrical Characteristics
- UL Voltage Rating: 600 V
Mechanical Characteristics
- Operating: -30°C To +90°C Dry; -30°C To +75°C Wet
- Max. Pull Tension: 352 lbs (160 kg)
- Bulk Cable Weight: 180 lbs/1000ft (270 kg/km)
Standards and Compliance
- Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial
- Flammability / Reaction to Fire: UL1581 Vertical Tray, 1202, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: NPLF, TC, THHN/THWN Singles
- European Directive Compliance: EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
History
- Update and Revision: Revision Number: 0.524 Revision Date: 09-07-2025
