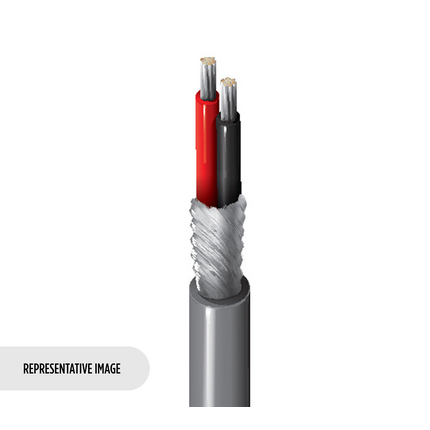

Belden 8790 0601000 Line Level Audio Cable, 1 Pr #18 Str TC, 85% TC Spiral Serve, PVC Jkt, CMG - Chrome, 1,000 ft Reel

$1,847.99
SKU:
8790 0601000
Shipping:
Calculated at Checkout
Color:
Chrome
Length:
1,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
8790
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 8790 0601000 Line Level Audio Cable, 1 Pr #18 Str TC, 85% TC Spiral Serve, PVC Jkt, CMG

Line Level Audio Cable, 1 Pair 18 AWG (7 x 26) Tinned Copper PVC insulation, 85% Tinned Copper Spiral Serve/Screen, PVC Jacket, CMG

Ordering Details

  • Manufacturer Part Number: 8790 0601000
  • Color: Chrome
  • Length: 1,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825216452
  • Manufacturer Footnote: C

Supplied as one 1,000 ft Reel.

Product Overview

  • Suitable Applications: Line level audio; Low voltage analog signals and control

Construction Details

  • Element: Pair(s); No. of Elements: 1; Size: 18 AWG; Stranding: 7x26; Material: TC - Tinned Copper
  • Element: Pair(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.022 in (0.56 mm); Nom. Insulation Diameter: 0.090 in (2.3 mm); Color Code: Red & White
  • Shield Type: Spiral Serve / Screen; Material: Tinned Copper (TC); Coverage: 85%
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.028 in (0.71 mm); Nom. Diameter: 0.241 in (6.12 mm)
  • Overall Cable Diameter (Nominal): 0.241 in (6.12 mm)

Electrical Characteristics

  • Element: Pair(s); Nom. Conductor DCR: 7.2 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 53 pF/ft (170 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 92 pF/ft (300 pF/m); Nom. Characteristic Impedence: 41 Ohm; Nom. Inductance: 0.18 µH/ft (0.59 µH/m); Nom. Velocity of Prop.: 65%; Max. Current: 8 Amps per conductor @ 25°C
  • UL Voltage Rating: 300 V (CMG)

Mechanical Characteristics

  • UL Temperature: 60°C; Operating: -20°C to +60°C
  • Stationary Min.: 2.4 in (61 mm); Installation Min.: 2.4 in (61 mm)
  • Max. Pull Tension: 45 lbs (20 kg)
  • Bulk Cable Weight: 31 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
  • Flammability / Reaction to Fire: UL 1685 FT4 Loading, FT4, IEEE 1202, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 800, CMG
  • CEC / C(UL) Compliance: CMG
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.461 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.
