Description
Belden 8770 0601000 Electronic, 3 C #18 Str TC, PE Ins, OS, PVC Jkt, CM

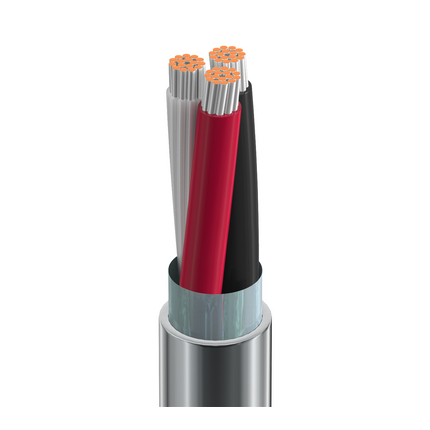

Electronic, 3 Conductor 18AWG (16x30) Tinned Copper, PE Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, CM
Ordering Details
- Manufacturer Part Number: 8770 0601000
- Color: Chrome
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825215608
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.
Product Overview
- Suitable Applications: low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring
Construction Details
- Element: Conductor(s); No. of Elements: 3; Size: 18 AWG; Stranding: 16x30; Material: TC - Tinned Copper
- Element: Conductor(s); Material: PE - Polyethylene; Nom. Thickness: 0.018 in (0.46 mm); Nom. Insulation Diameter: 0.082 in (2.1 mm); Color Code: Black, Red, Clear
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 20 AWG (7x28) TC
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.033 in (0.84 mm); Nom. Diameter: 0.246 in (6.25 mm)
- Overall Cable Diameter (Nominal): 0.246 in (6.25 mm)
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 7.06 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 24 pF/ft (79 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 48 pF/ft (160 pF/m); Nom. Characteristic Impedence: 69 Ohm; Nom. Inductance: 0.18 µH/ft (0.59 µH/m); Max. Current: 14 Amps per Conductor at 30ºC
- Nom Outer Shield DCR: 8.08 Ohm/1000ft (26.5 Ohm/km)
- UL Voltage Rating: 300 V (CM), 300 V (UL AWM 2093)
Mechanical Characteristics
- UL Temperature: 60°C; Operating: -20°C to +60°C
- Stationary Min.: 0.16 in (4.1 mm); Installation Min.: 2.5 in (64 mm)
- Max. Pull Tension: 75 lbs (34 kg)
- Bulk Cable Weight: 36 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: UL 1685 UL loading , IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca; CPR UKCA Class: Eca
- NEC / UL Compliance: Article 800, CM
- AWM Compliance: AWM 2093
- CEC / C(UL) Compliance: CM
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- Plenum Number: 88770
History
- Update and Revision: Revision Number: 0.533 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP., Y - FINAL PUT-UP LENGTH MAY VAR -10% TO +20% FROM LENGTH SHOWN. MAY CONTAIN 2 PIECES. MINIMUM LENGTH OF ANY ONE PIECE IS 1500'.
