Belden 8723MN 008100 SpaceMaker™, 2 Pr #22 Str TC, PO Ins, IS, PVC Jkt, AWM 2937 - Gray

$122.99
SKU:
8723MN 008100
Shipping:
Calculated at Checkout
Color:
Gray
Manufacturer Status:
Active
Product Family:
8723MN
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 8723MN 008100 SpaceMaker™, 2 Pr #22 Str TC, PO Ins, IS, PVC Jkt, AWM 2937

SpaceMaker™, 2 Pair 22AWG (19x34) Tinned Copper, PO Insulation, Individual Beldfoil® Shield, PVC Outer Jacket, AWM 2937

Ordering Details

  • Manufacturer Part Number: 8723MN 008100
  • Color: Gray
  • UPC/EAN: 612825386117

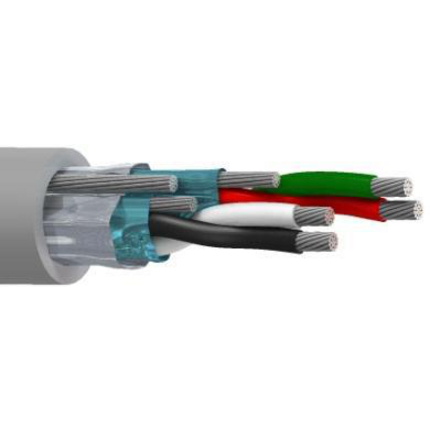

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Construction Details

  • Element: Pair(s); No. of Elements: 2; Size: 22 AWG; Stranding: 19x34; Material: TC - Tinned Copper
  • Element: Pair(s); Material: PP - Polypropylene; Nom. Thickness: 0.010 in (0.25 mm); Nom. Insulation Diameter: 0.049 in (1.2 mm); Color Code: Black & White, Red & Dark Green
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 24 AWG (19x36) TC; Notes: foil-out tape on each pair, one drain wire
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 22 AWG (19x34) TC
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.016 in (0.41 mm); Nom. Diameter: 0.228 in
  • Overall Cable Diameter (Nominal): 0.228 in

Electrical Characteristics

  • Nom. Conductor DCR: 18.1 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 43.4 pF/ft (142 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 81.6 pF/ft (268 pF/m); Nom. Characteristic Impedence: 51 Ohm; Nom. Inductance: 0.031 µH/ft (0.10 µH/m); Max. Current: 4.8 Amps per Conductor at 30ºC
  • UL Voltage Rating: 300 V

Mechanical Characteristics

  • UL Temperature: 80°C; Operating: -20°C to +80°C
  • Stationary Min.: 0.912 in (23.2 mm); Installation Min.: 0.912 in
  • Max. Pull Tension: 53.4 lbs (24.2 kg)
  • Bulk Cable Weight: 25 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor
  • Flammability / Reaction to Fire: FT2
  • CPR Compliance: CPR Euroclass: Eca
  • AWM Compliance: AWM 2937
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark

History

  • Update and Revision: Revision Number: 0.399 Revision Date: 09-07-2025

Resources

Belden 8723MN Product Information
