Description

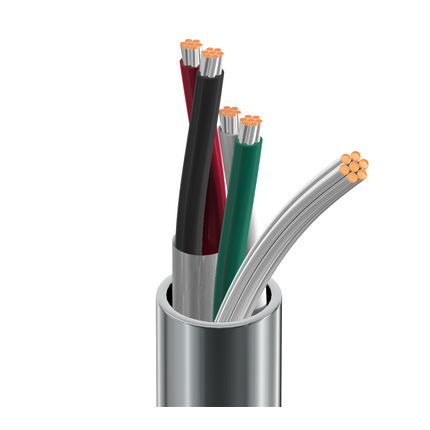

Belden 8722 0601000 Audio, Control and Instrumentation Cable, 2 Pr #20 Str TC, 1 Pr Shielded, 1 Pr Unshielded, PVC Jkt, CMG
Audio, Control & Instrumentation Cable, 2 Pair 20 AWG (7 x 28) Tinned Copper, PVC Insulation, 1 Pair (Red & Black) Beldfoil® Shield, 1 Pair (Green & White) Unshielded, PVC Jacket, CMG
Ordering Details
- Manufacturer Part Number: 8722 0601000
- Color: Chrome
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825214403
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.
Product Overview
- Suitable Applications: low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring
Construction Details
- Element: Pair(s); No. of Elements: 1; Size: 20 AWG; Stranding: 7x28; Material: TC - Tinned Copper
- Element: Pair(s); No. of Elements: 1; Size: 20 AWG; Stranding: 7x28; Material: TC - Tinned Copper
- Element: Pair(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.017 in (0.43 mm); Nom. Insulation Diameter: 0.070 in (1.8 mm); Color Code: Red & Black
- Element: Pair(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.017 in (0.43 mm); Nom. Insulation Diameter: 0.070 in (1.8 mm); Color Code: Green & White
- Element: Pair(s); Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 22 AWG (7x30) TC
- Element: Pair(s); Material: No Shield
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.028 in (0.71 mm); Nom. Diameter: 0.231 in (5.87 mm)
- Overall Cable Diameter (Nominal): 0.231 in (5.87 mm)
Electrical Characteristics
- Element: Pair(s); Nom. Conductor DCR: 11.3 Ohm/1000ft; Nom. Inner Shield DCR: 11.54 Ohm/1000ft (37.86 Ohm/km); Nom. Capacitance Cond-to-Cond: 60 pF/ft (200 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 99 pF/ft (320 pF/m); Nom. Inductance: 0.2 µH/ft (0.66 µH/m); Max. Current: 6.08 Amps per conductor @ 25°C
- Element: Conductor(s); Nom. Conductor DCR: 10 Ohm/1000ft (33 Ohm/km); Max. Current: 6.08 Amps per conductor @ 25°C
- UL Voltage Rating: 300 V
Mechanical Characteristics
- UL Temperature: 80°C; Operating: -20°C to +80°C
- Stationary Min.: 2.3 in (58 mm); Installation Min.: 2.3 in (58 mm)
- Max. Pull Tension: 63 lbs (29 kg)
- Bulk Cable Weight: 33 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
- Flammability / Reaction to Fire: UL 1685 FT4 Loading, IEEE 1202, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 800, CMG
- CEC / C(UL) Compliance: CMG
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
Product Notes
- Notes: Request Technical Bulletin T/8-21 before planning high and low level circuits in the same cable.
History
- Update and Revision: Revision Number: 0.434 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
