Belden 8720 0605000 Electronic, 2 C #14 Str TC, PE Ins, OS, PVC Jkt, CM - Chrome, 5,000 ft Reel

$21,534.99
SKU:
8720 0605000
Shipping:
Calculated at Checkout
Color:
Chrome
Length:
5,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
8720
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

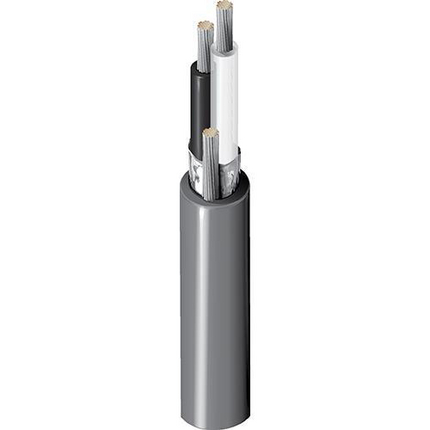

Belden 8720 0605000 Electronic, 2 C #14 Str TC, PE Ins, OS, PVC Jkt, CM

Electronic, 2 Conductor 14AWG (19x27) Tinned Copper, PE Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, CM

Ordering Details

  • Manufacturer Part Number: 8720 0605000
  • Color: Chrome
  • Length: 5,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825214366
  • Manufacturer Footnote: C

Supplied as one 5,000 ft Reel.

Product Overview

  • Suitable Applications: up to 600V analog signals ; up to 600V digital control ; line level audio; voice communications; panel wiring

Construction Details

  • Element: Pair(s); No. of Elements: 1; Size: 14 AWG; Stranding: 19x27; Material: TC - Tinned Copper
  • Element: Pair(s); Material: PE - Polyethylene; Nom. Thickness: 0.032 in (0.81 mm); Nom. Insulation Diameter: 0.140 in (3.56 mm); Color Code: Black & Clear
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 16 AWG (19x29) TC
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.035 in (0.89 mm); Nom. Diameter: 0.355 in (9.02 mm)
  • Overall Cable Diameter (Nominal): 0.355 in (9.02 mm)

Electrical Characteristics

  • Element: Conductor(s); Nom. Conductor DCR: 2.84 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 24 pF/ft (79 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 47 pF/ft (150 pF/m); Nom. Characteristic Impedence: 58 Ohm; Nom. Inductance: 0.2 µH/ft (0.66 µH/m); Max. Current: 25 Amps per Conductor at 30ºC
  • Nom Outer Shield DCR: 4 Ohm/1000ft (13 Ohm/km)
  • UL Voltage Rating: 600 V (UL AWM 20253), 300 V (CSA AWM)

Mechanical Characteristics

  • UL Temperature: 80°C; Operating: -20°C to +80°C
  • Stationary Min.: 3.6 in (91 mm); Installation Min.: 3.6 in (91 mm)
  • Max. Pull Tension: 135 lbs (61.2 kg)
  • Bulk Cable Weight: 64 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor
  • Sustainability: CA Prop 65
  • Flammability / Reaction to Fire: UL 1685 UL loading , IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 725, CL2
  • AWM Compliance: AWM 20253
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.665 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.
