Description

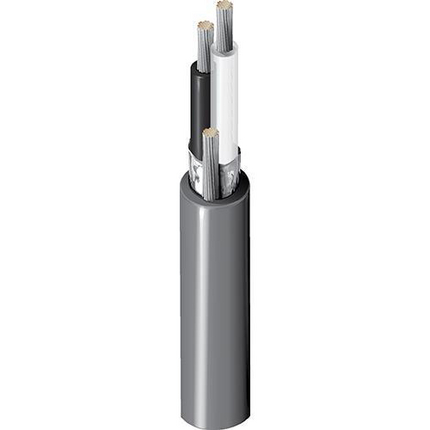

Belden 8720 060500 Electronic, 2 C #14 Str TC, PE Ins, OS, PVC Jkt, CM
Electronic, 2 Conductor 14AWG (19x27) Tinned Copper, PE Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, CM
Ordering Details
- Manufacturer Part Number: 8720 060500
- Color: Chrome
- Length: 500 ft
- Put-Up: Reel
- UPC/EAN: 612825214359
- Manufacturer Footnote: C
Supplied as one 500 ft Reel.
Product Overview
- Suitable Applications: up to 600V analog signals ; up to 600V digital control ; line level audio; voice communications; panel wiring
Construction Details
- Element: Pair(s); No. of Elements: 1; Size: 14 AWG; Stranding: 19x27; Material: TC - Tinned Copper
- Element: Pair(s); Material: PE - Polyethylene; Nom. Thickness: 0.032 in (0.81 mm); Nom. Insulation Diameter: 0.140 in (3.56 mm); Color Code: Black & Clear
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 16 AWG (19x29) TC
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.035 in (0.89 mm); Nom. Diameter: 0.355 in (9.02 mm)
- Overall Cable Diameter (Nominal): 0.355 in (9.02 mm)
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 2.84 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 24 pF/ft (79 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 47 pF/ft (150 pF/m); Nom. Characteristic Impedence: 58 Ohm; Nom. Inductance: 0.2 µH/ft (0.66 µH/m); Max. Current: 25 Amps per Conductor at 30ºC
- Nom Outer Shield DCR: 4 Ohm/1000ft (13 Ohm/km)
- UL Voltage Rating: 600 V (UL AWM 20253), 300 V (CSA AWM)
Mechanical Characteristics
- UL Temperature: 80°C; Operating: -20°C to +80°C
- Stationary Min.: 3.6 in (91 mm); Installation Min.: 3.6 in (91 mm)
- Max. Pull Tension: 135 lbs (61.2 kg)
- Bulk Cable Weight: 64 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: UL 1685 UL loading , IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 725, CL2
- AWM Compliance: AWM 20253
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.665 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
