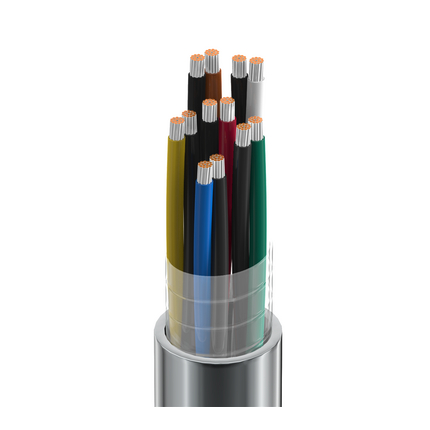

Belden 8691 0605000 Electronic, 6 Pr #18 Str TC, PVC Ins, PVC Jkt, CMG - Chrome, 5,000 ft Reel

$60,856.99
SKU:
8691 0605000
Shipping:
Calculated at Checkout
Color:
Chrome
Length:
5,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
8691
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 8691 0605000 Electronic, 6 Pr #18 Str TC, PVC Ins, PVC Jkt, CMG

Electronic, 6 Pair 18AWG (16x30) Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG

Ordering Details

  • Manufacturer Part Number: 8691 0605000
  • Color: Chrome
  • Length: 5,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825214120
  • Manufacturer Footnote: C Z

Supplied as one 5,000 ft Reel.

Product Overview

  • Suitable Applications: low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Construction Details

  • Element: Pair(s); No. of Elements: 6; Size: 18 AWG; Stranding: 16x30; Material: TC - Tinned Copper
  • Element: Pair(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.013 in (0.33 mm); Nom. Insulation Diameter: 0.073 in (1.9 mm); Color Code: Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.032 in (0.81 mm); Nom. Diameter: 0.433 in (11.0 mm)
  • Overall Cable Diameter (Nominal): 0.433 in (11.0 mm)

Electrical Characteristics

  • Element: Pair(s); Nom. Conductor DCR: 7.2 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 25.5 pF/ft (83.7 pF/m); Max. Current: 3.5 Amps per Conductor at 20ºC
  • UL Voltage Rating: 300 V (CMG), 300 V (UL AWM 2464)

Mechanical Characteristics

  • UL Temperature: 80°C; Operating: -20°C to +80°C
  • Stationary Min.: 4.3 in (110 mm); Installation Min.: 4.3 in (110 mm)
  • Max. Pull Tension: 249 lbs (113 kg)
  • Bulk Cable Weight: 108 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor
  • Sustainability: CA Prop 65
  • Flammability / Reaction to Fire: UL 1685 FT4 Loading, FT4
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 800, CMG
  • AWM Compliance: AWM 2464
  • CEC / C(UL) Compliance: CMG
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.536 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
