Description

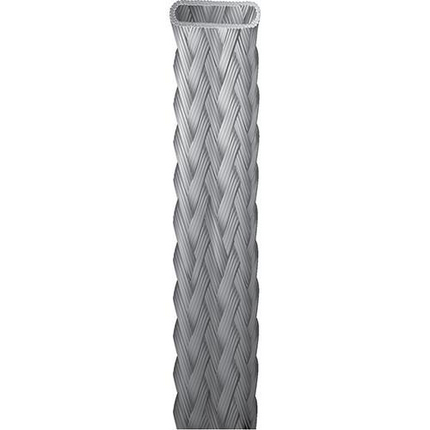

Belden 8669 000250 Shielding & Bonding, TC Braid #8.9AWG
Shielding & Bonding, TC Braid 8.9AWG (336x34)
Ordering Details
- Manufacturer Part Number: 8669 000250
- Color: None
- Length: 250 ft
- Put-Up: Reel
- UPC/EAN: 612825213970
- Manufacturer Footnote: C E
Supplied as one 250 ft Reel.
Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: for shielding and bonding cable
Construction Details
- Element: Braid; No. of Elements: 1; Size: 9 AWG; Stranding: 336x34; Material: TC - Tinned Copper
Electrical Characteristics
- Nom. Conductor DCR: 0.78 Ohm/1000ft; Max. Current: Single conductor in free air @ 30ºC: 62.0 A
Mechanical Characteristics
- UL Temperature: 80°C; Operating: -40°C To +80°C
- Max. Pull Tension: 123 lbs (55.8 kg)
- Bulk Cable Weight: 46 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Outdoor
- Sustainability: CA Prop 65
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
Product Notes
- Notes: AWG size is approximated.
History
- Update and Revision: Revision Number: 0.462 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP., E - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 25'.
