Description
Belden 8660 00050 Shielding & Bonding, TC Braid #14.3AWG
Shielding & Bonding, TC Braid 14.3AWG (96x34)
Ordering Details
- Manufacturer Part Number: 8660 00050
- Color: None
- Length: 50 ft
- Put-Up: Reel
- UPC/EAN: 612825213888
Supplied as one 50 ft Reel.

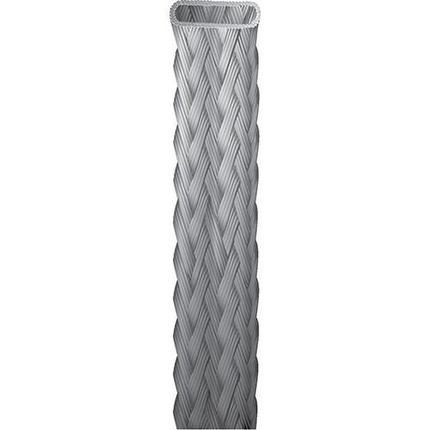

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: for shielding and bonding cable
Construction Details
- Element: Braid; No. of Elements: 1; Size: 14.3; Stranding: 96x34; Material: TC - Tinned Copper
- Overall Cable Diameter (Nominal): 0.153 in (3.89 mm)
Electrical Characteristics
- Nom. Conductor DCR: 2.72 Ohm/1000ft; Max. Current: Single conductor in free air @ 30ºC: 27.0 A
Mechanical Characteristics
- Stationary Min.: 0.16 in (4.1 mm); Installation Min.: 0.16 in (4.1 mm)
- Max. Pull Tension: 52 lbs (24 kg)
- Bulk Cable Weight: 12 lbs/1000ft
Standards and Compliance
- Sustainability: CA Prop 65
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
Product Notes
- Notes: AWG size is approximated.
History
- Update and Revision: Revision Number: 0.446 Revision Date: 02-20-2026
