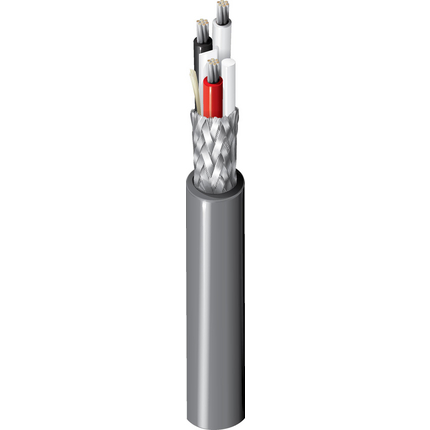

Belden 8643 060100 Electronic, 3 C #30 Str TC, PP Ins, OA TC Brd, PVC Jkt - Chrome, 100 ft Reel

$538.99
SKU:
8643 060100
Shipping:
Calculated at Checkout
Color:
Chrome
Length:
100 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
8643
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 8643 060100 Electronic, 3 C #30 Str TC, PP Ins, OA TC Brd, PVC Jkt

Electronic, 3 Conductor 30AWG (7x38) Tinned Copper, PP Insulation, Overall Tinned Copper Braid(95%) Shield, PVC Outer Jacket

Ordering Details

  • Manufacturer Part Number: 8643 060100
  • Color: Chrome
  • Length: 100 ft
  • Put-Up: Reel
  • UPC/EAN: 612825213826

Supplied as one 100 ft Reel.

Product Overview

  • Suitable Applications: low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring

Construction Details

  • Element: Conductor(s); No. of Elements: 3; Size: 30 AWG; Stranding: 7x38; Material: TC - Tinned Copper
  • Element: Conductor(s); Material: PP - Polypropylene; Nom. Thickness: 0.006 in (0.15 mm); Color Code: Black, Red, White
  • Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 95%; Notes: Paper Tape Separator
  • Separator: Paper Tape; Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.014 in (0.36 mm); Nom. Diameter: 0.096 in (2.4 mm)
  • Overall Cable Diameter (Nominal): 0.096 in (2.4 mm)

Electrical Characteristics

  • Element: Conductor(s); Nom. Conductor DCR: 98.5 Ohm/1000ft (323 Ohm/km); Nom. Capacitance Cond-to-Cond: 25 pF/ft (82 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 43 pF/ft (140 pF/m); Max. Current: 0.9 Amps per Conductor at 25ºC
  • Nom Outer Shield DCR: 11.1 Ohm/1000ft (36.4 Ohm/km)
  • Voltage Rating: 200 V

Mechanical Characteristics

  • Operating: -20°C to +105°C
  • Stationary Min.: 1.0 in (25 mm); Installation Min.: 1.0 in (25 mm)
  • Max. Pull Tension: 22.5 lbs (10.2 kg)
  • Bulk Cable Weight: 8 lbs/1000ft (12 kg/km)

Standards and Compliance

  • Environmental Suitability: Indoor
  • Sustainability: CA Prop 65
  • CPR Compliance: CPR Euroclass: Eca
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

  • Notes: Conductors cabled around textile strength member

History

  • Update and Revision: Revision Number: 0.371 Revision Date: 09-07-2025

Resources

Belden 8643 Product Information
