Belden 8628 060100 Electronic, 7 C #14 Str TC, PVC Ins, PVC Jkt
Electronic, 7 Conductor 14AWG (19x27) Tinned Copper, PVC Insulation, PVC Outer Jacket
Ordering Details
- Manufacturer Part Number: 8628 060100
- Color: Chrome
- Length: 100 ft
- Put-Up: Reel
- UPC/EAN: 612825213703
- Manufacturer Footnote: C
Supplied as one 100 ft Reel.

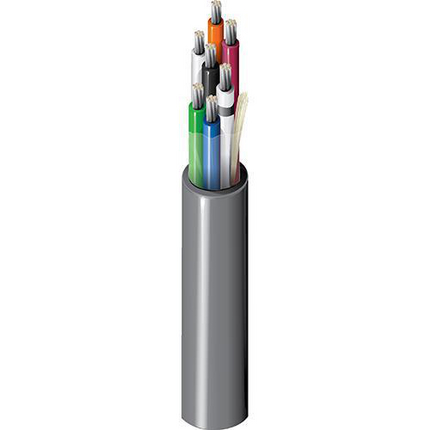

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: up to 600V analog signals ; up to 600V control ; line level audio; voice communications; panel wiring
Construction Details
- Element: Conductor(s); No. of Elements: 7; Size: 14 AWG; Stranding: 19x27; Material: TC - Tinned Copper
- Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.045 in (1.1 mm); Color Code: Black, White, Red, Green, Orange, Blue, White/Black Stripe
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.060 in (1.5 mm); Nom. Diameter: 0.623 in (15.8 mm)
- Overall Cable Diameter (Nominal): 0.623 in (15.8 mm)
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 2.8 Ohm/1000ft (9.2 Ohm/km); Nom. Capacitance Cond-to-Cond: 18 pF/ft (59 pF/m); Max. Current: 6.5 Amps per Conductor at 25ºC
- Voltage Rating: 600 V
Mechanical Characteristics
- Operating: -20°C To +80°C
- Max. Pull Tension: 332 lbs (151 kg)
- Bulk Cable Weight: 239 lbs/1000ft (356 kg/km)
Standards and Compliance
- Flammability / Reaction to Fire: UL 1581 (VW-1)
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.361 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
