Belden 8624 0601000 Electronic, 19 C #16 Str TC, PVC Ins, PVC Jkt - Chrome, 1,000 ft Reel

$42,801.99
SKU:
8624 0601000
Shipping:
Calculated at Checkout
Color:
Chrome
Length:
1,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
8624
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 8624 0601000 Electronic, 19 C #16 Str TC, PVC Ins, PVC Jkt

Electronic, 19 Conductor 16AWG (19x29) Tinned Copper, PVC Insulation, PVC Outer Jacket

Ordering Details

  • Manufacturer Part Number: 8624 0601000
  • Color: Chrome
  • Length: 1,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825213642
  • Manufacturer Footnote: C

Supplied as one 1,000 ft Reel.

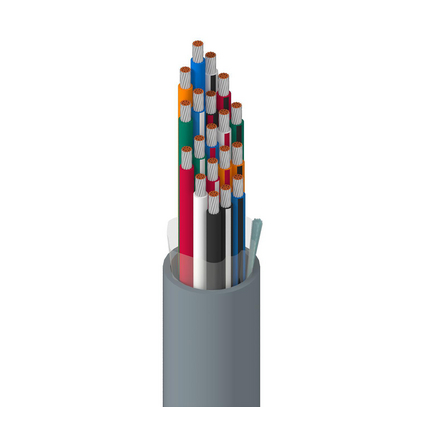

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: up to 600V analog signals ; up to 600V control ; line level audio; voice communications; panel wiring

Construction Details

  • Element: Conductor(s); No. of Elements: 19; Size: 16 AWG; Stranding: 19x29; Material: TC - Tinned Copper
  • Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.031 in (0.79 mm); Color Code: Black, White, Red, Green, Orange, Blue, White/Black Stripe, Red/Black Stripe, Green/Black Stripe, Orange/Black Stripe, Blue/Black Stripe, Black/White Stripe, Red/White Stripe, Green/White Stripe, Blue/White Stripe, Black/Red Stripe, White/Red Stripe, Orange/Red Stripe, Blue/Red Stripe
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.065 in (1.7 mm); Nom. Diameter: 0.740 in (18.8 mm)
  • Overall Cable Diameter (Nominal): 0.740 in (18.8 mm)

Electrical Characteristics

  • Element: Conductor(s); Nom. Conductor DCR: 4.4 Ohm/1000ft (14 Ohm/km); Nom. Capacitance Cond-to-Cond: 19.5 pF/ft (64.0 pF/m); Max. Current: 3.5 Amps per Conductor at 25ºC
  • Voltage Rating: 600 V

Mechanical Characteristics

  • Operating: -20°C to +80°C
  • Max. Pull Tension: 577 lbs (262 kg)
  • Bulk Cable Weight: 336 lbs/1000ft (500 kg/km)

Standards and Compliance

  • Flammability / Reaction to Fire: UL 1581 (VW-1), IEC 60332-1-2
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.335 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.

Resources

Belden 8624 Product Information
