Description

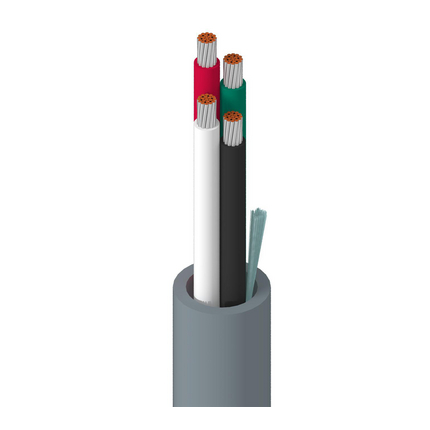

Belden 8620 0605000 Electronic, 4 C #16 Str TC, PVC Ins, PVC Jkt
Electronic, 4 Conductor 16AWG (19x29) Tinned Copper, PVC Insulation, PVC Outer Jacket
Ordering Details
- Manufacturer Part Number: 8620 0605000
- Color: Chrome
- Length: 5,000 ft
- Put-Up: Reel
- UPC/EAN: 612825213512
Supplied as one 5,000 ft Reel.
Product Overview
- Suitable Applications: Analog Signals & Control (up to 600V); Line Level Audio; Voice Communications; Panel Wiring
Construction Details
- Element: Conductor(s); No. of Elements: 4; Size: 16 AWG; Stranding: 19x29; Material: TC - Tinned Copper
- Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.031 in (0.79 mm); Nom. Insulation Diameter: 0.121 in (3.07 mm); Color Code: Black, Green, White, Red
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.042 in (1.1 mm); Nom. Diameter: 0.376 in (9.55 mm)
- Overall Cable Diameter (Nominal): 0.376 in (9.55 mm)
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 4.45 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 19.5 pF/ft (64.0 pF/m); Max. Current: 12 Amps per Conductor at 30ºC
- Voltage Rating: 600 V
Mechanical Characteristics
- Operating: -30°C to +75°C
- Stationary Min.: 3.8 in (97 mm); Installation Min.: 3.8 in (97 mm)
- Max. Pull Tension: 160 lbs (73 kg)
- Bulk Cable Weight: 81 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor
- Flammability / Reaction to Fire: UL 1581 (VW-1), IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.522 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
