Description
Belden 8618 0605000 Electronic, 3 C #16 Str TC, PE Ins, OS, PVC Jkt, CL3

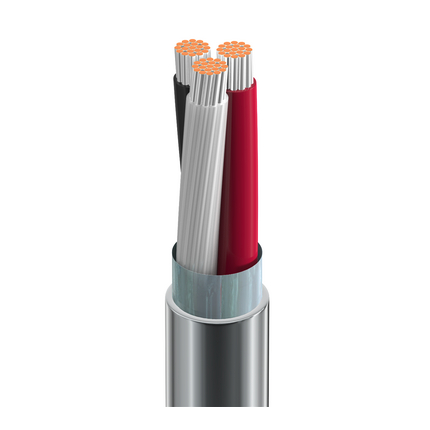

Electronic, 3 Conductor 16AWG (19x29) Tinned Copper, PE Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, CL3
Ordering Details
- Manufacturer Part Number: 8618 0605000
- Color: Chrome
- Length: 5,000 ft
- Put-Up: Reel
- UPC/EAN: 612825213437
Supplied as one 5,000 ft Reel.
Product Overview
- Suitable Applications: low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring
Construction Details
- Element: Conductor(s); No. of Elements: 3; Size: 16 AWG; Stranding: 19x29; Material: TC - Tinned Copper
- Element: Conductor(s); Material: PE - Polyethylene; Nom. Thickness: 0.032 in (0.81 mm); Nom. Insulation Diameter: 0.122 in (3.10 mm); Color Code: Black, Red, Clear
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 18 AWG (16x30) TC
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.031 in (0.79 mm); Nom. Diameter: 0.327 in (8.31 mm)
- Overall Cable Diameter (Nominal): 0.327 in (8.31 mm)
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 4.44 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 26 pF/ft (85 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 50 pF/ft (160 pF/m); Max. Current: 16 Amps per Conductor at 30ºC
- Nom Outer Shield DCR: 5.54 Ohm/1000ft (18.2 Ohm/km)
- UL Voltage Rating: 600 V (UL AWM 20253), 300 V (CL3)
Mechanical Characteristics
- UL Temperature: 80°C; Operating: -20°C to +80°C
- Stationary Min.: 3.3 in (84 mm); Installation Min.: 3.3 in (84 mm)
- Max. Pull Tension: 141 lbs (64.0 kg)
- Bulk Cable Weight: 60 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: UL 1685 UL loading , IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 725, CL3
- AWM Compliance: AWM 20253
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.525 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
