Description
Belden 8527 006100 Lead Wire, #12 Str TC, PVC Ins, TYPE MW MIL-W-76C-PVC
Low Temp Plastic Lead Wire, 12AWG (65x30) Tinned Copper, PVC Insulation, TYPE MW MIL-W-76C-PVC 1000V 80C
Ordering Details
- Manufacturer Part Number: 8527 006100
- Color: Blue, Light
- Length: 100 ft
- Put-Up: Reel
- UPC/EAN: 612825212812
Supplied as one 100 ft Reel.

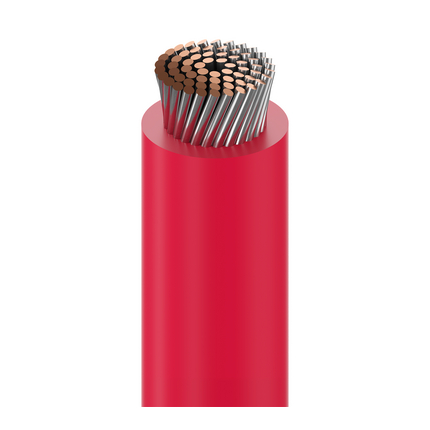

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: inter-connection circuits, internal wiring of computer and electronic equipments, (Type MW) MIL-W-76C-Low Temp applications
Construction Details
- Element: Conductor(s); No. of Elements: 1; Size: 12 AWG; Stranding: 65x30; Material: TC - Tinned Copper
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.021 in (0.53 mm); Nom. Insulation Diameter: 0.128 in (3.25 mm)
- Overall Cable Diameter (Nominal): 0.128 in (3.25 mm)
Electrical Characteristics
- Nom. Conductor DCR: 4.32 Ohm/1000ft; Max. Current: Single conductor in free air @ 30ºC: 9.0 A
- UL Voltage Rating: 1000 V RMS
Mechanical Characteristics
- UL Temperature: 80°C; Operating: -40°C To +80°C
- Stationary Min.: 1.28 in (32.5 mm); Installation Min.: 1.28 in (32.5 mm)
- Max. Pull Tension: 64 lbs (29 kg)
- Bulk Cable Weight: 24 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Outdoor
- Sustainability: CA Prop 65
- Military Compliance: MIL-W-76C Type MWP
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
History
- Update and Revision: Revision Number: 0.457 Revision Date: 02-20-2026
- Footnote: P - STRIPE COLORS ON STOCK SOLID COLORS. STRIPING ADDER OF $8.00/M= FOR 1 OR 2 STRIPES. 10,000' MINIMUM ORDER FOR COLOR COMBINATION. PUT-UP WILL BE SUBJECT TO TWO PIECES (+ OR -) 10% PER SPOOL, WITH A MINIMUM LENGTH OF 100'., C - CRATE REEL PUT-UP.
