Description
Belden 8520 010100 Lead Wire, #14 Str TC, PVC Ins, TYPE MW MIL-W-76C-PVC
Low Temp Plastic Lead Wire, 14AWG (41x30) Tinned Copper, PVC Insulation, TYPE MW MIL-W-76C-PVC 1000V 80C
Ordering Details
- Manufacturer Part Number: 8520 010100
- Color: Black
- Length: 100 ft
- Put-Up: Reel
- UPC/EAN: 612825210788
Supplied as one 100 ft Reel.

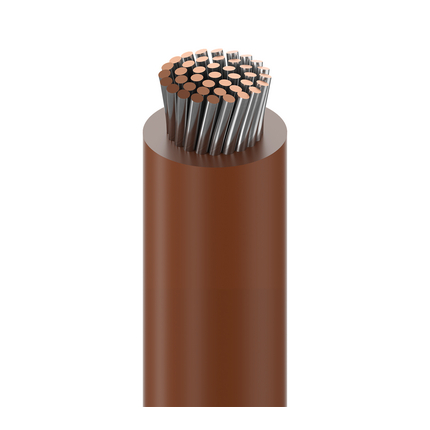

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: inter-connection circuits, internal wiring of computer and electronic equipments, (Type MW) MIL-W-76C-Low Temp applications
Construction Details
- Size: 14; Stranding: 41x30; Material: TC - Tinned Copper
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.019 in (0.48 mm); Nom. Insulation Diameter: 0.111 in (2.82 mm)
- Overall Cable Diameter (Nominal): 0.111 in (2.82 mm)
Electrical Characteristics
- UL Voltage Rating: 1000 V RMS
Mechanical Characteristics
- Bulk Cable Weight: 16 lbs/1000ft (24 kg/km)
Standards and Compliance
- Sustainability: CA Prop 65
- Military Compliance: MIL-W-76C Type MWP
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
History
- Update and Revision: Revision Number: 0.399 Revision Date: 02-20-2026
- Footnote: P - STRIPE COLORS ON STOCK SOLID COLORS. STRIPING ADDER OF $8.00/M= FOR 1 OR 2 STRIPES. 10,000' MINIMUM ORDER FOR COLOR COMBINATION. PUT-UP WILL BE SUBJECT TO TWO PIECES (+ OR -) 10% PER SPOOL, WITH A MINIMUM LENGTH OF 100'., A - STOCKED STRIPE COLORS.
