Belden 8502 005100 Lead Wire, #20 Str TC, PVC Ins, TYPE B MIL-W-16878/1
Low Temp Plastic Lead Wire, 20AWG (7x28) Tinned Copper, PVC Insulation, TYPE B MIL-W-16878/1 600V 105C
Ordering Details
- Manufacturer Part Number: 8502 005100
- Color: Green, Dark
- Length: 100 ft
- Put-Up: Reel
- UPC/EAN: 612825209560
Supplied as one 100 ft Reel.

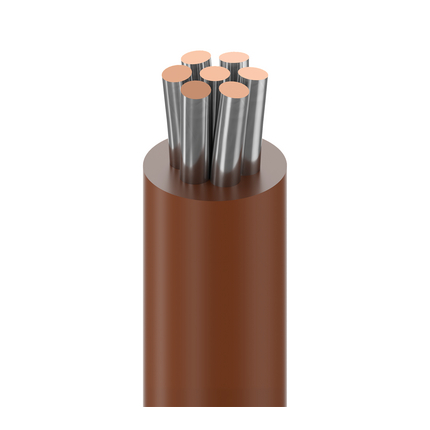

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: inter-connection circuits, internal wiring of computer and electronic equipments, (Type B) MIL-W-16878/1-Low Temp applications
Construction Details
- Element: Conductor(s); No. of Elements: 1; Size: 20 AWG; Stranding: 7x28; Material: TC - Tinned Copper
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.01 in (0.25 mm); Nom. Insulation Diameter: 0.058 in (1.5 mm)
- Overall Cable Diameter (Nominal): 0.058 in (1.5 mm)
Electrical Characteristics
- Nom. Conductor DCR: 9.8 Ohm/1000ft; Max. Current: Single conductor in free air @ 30ºC: 14.0 A
- UL Voltage Rating: 600 V RMS
Mechanical Characteristics
- UL Temperature: 105°C; Operating: -40°C To +105°C
- Stationary Min.: 0.58 in (15 mm); Installation Min.: 0.58 in (15 mm)
- Max. Pull Tension: 11 lbs (5.0 kg)
- Bulk Cable Weight: 4 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Outdoor
- Sustainability: CA Prop 65
- Military Compliance: MIL-W-16878/1
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
History
- Update and Revision: Revision Number: 0.488 Revision Date: 02-20-2026
- Footnote: P - STRIPE COLORS ON STOCK SOLID COLORS. STRIPING ADDER OF $8.00/M= FOR 1 OR 2 STRIPES. 10,000' MINIMUM ORDER FOR COLOR COMBINATION. PUT-UP WILL BE SUBJECT TO TWO PIECES (+ OR -) 10% PER SPOOL, WITH A MINIMUM LENGTH OF 100'., A - STOCKED STRIPE COLORS.
