Description

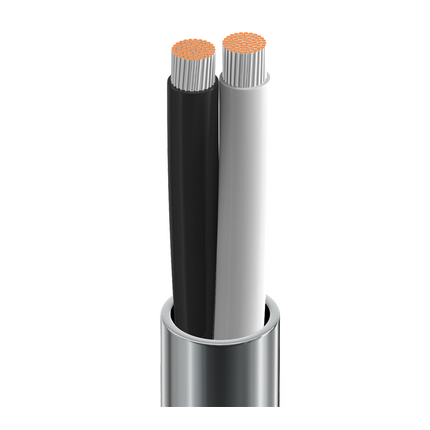

Belden 8477 0605000 Electronic, 2 C #12 Str TC, PVC Ins, PVC Jkt, CL3R
Electronic, 2 Conductor 12AWG (65x30) Tinned Copper, PVC Insulation, PVC Outer Jacket, CL3R
Ordering Details
- Manufacturer Part Number: 8477 0605000
- Color: Chrome
- Length: 5,000 ft
- Put-Up: Reel
- UPC/EAN: 612825208679
- Manufacturer Footnote: C Z
Supplied as one 5,000 ft Reel.
Product Overview
- Suitable Applications: up to 600V analog signals ; up to 600V digital control ; line level audio; voice communications; panel wiring
Construction Details
- Element: Pair(s); No. of Elements: 1; Size: 12 AWG; Stranding: 65x30; Material: TC - Tinned Copper
- Element: Pair(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.033 in (0.84 mm); Nom. Insulation Diameter: 0.158 in (4.01 mm); Color Code: Black & White
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.035 in (0.89 mm); Nom. Diameter: 0.386 in (9.80 mm)
- Overall Cable Diameter (Nominal): 0.386 in (9.80 mm)
Electrical Characteristics
- Element: Pair(s); Nom. Conductor DCR: 1.78 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 35 pF/ft (110 pF/m); Nom. Inductance: 0.18 µH/ft (0.59 µH/m); Max. Current: 30 Amps per Conductor at 30ºC
- UL Voltage Rating: 600 V (CL3R), 600 V (UL AWM 2587)
Mechanical Characteristics
- UL Temperature: 90°C; Operating: -20°C to +90°C
- Stationary Min.: 3.9 in (99 mm); Installation Min.: 3.9 in (99 mm)
- Max. Pull Tension: 169 lbs (76.7 kg)
- Bulk Cable Weight: 79 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: UL 1666 Riser, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 725, CL3R
- AWM Compliance: AWM 2587
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
Product Notes
- Notes: See NEC Guidelines for applicable CL3 voltage ratings.
History
- Update and Revision: Revision Number: 0.520 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
