Belden 8458MN 008100 SpaceMaker™, 15 C #22 Str TC, PO Ins, PVC Jkt, AWM 2937 - Gray, 100 ft Reel

$518.99
SKU:
8458MN 008100
Shipping:
Calculated at Checkout
Color:
Gray
Length:
100 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
8458MN
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 8458MN 008100 SpaceMaker™, 15 C #22 Str TC, PO Ins, PVC Jkt, AWM 2937

SpaceMaker™, 15 Conductor 22AWG (19x34) Tinned Copper, PO Insulation, PVC Outer Jacket, AWM 2937

Ordering Details

  • Manufacturer Part Number: 8458MN 008100
  • Color: Gray
  • Length: 100 ft
  • Put-Up: Reel
  • UPC/EAN: 612825385707

Supplied as one 100 ft Reel.

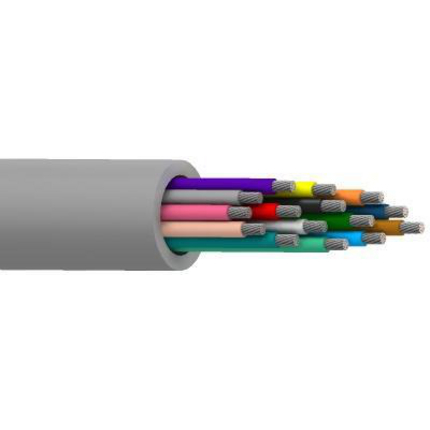

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Construction Details

  • Element: Conductor(s); No. of Elements: 15; Size: 22 AWG; Stranding: 19x34; Material: TC - Tinned Copper
  • Element: Conductor(s); Material: PP - Polypropylene; Nom. Thickness: 0.010 in (0.25 mm); Nom. Insulation Diameter: 0.050 in (1.3 mm); Color Code: Black, White, Red, Green, Brown, Blue, Orange, Yellow, Purple, Gray, Pink, Tan, Aqua, Light Green, Light Blue
  • Material: No Shield
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.016 in (0.41 mm); Nom. Diameter: 0.267 in; Ripcord: Yes
  • Overall Cable Diameter (Nominal): 0.267 in

Electrical Characteristics

  • Nom. Conductor DCR: 18.1 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 16.6 pF/ft (54.5 pF/m); Nom. Characteristic Impedence: 51 Ohm; Nom. Inductance: 0.031 µH/ft (0.10 µH/m); Max. Current: 2.03 Amps per Conductor at 25ºC
  • UL Voltage Rating: 300 V

Mechanical Characteristics

  • UL Temperature: 80°C; Operating: -20°C To +80°C
  • Stationary Min.: 1.070 in (27.18 mm); Installation Min.: 1.070 in
  • Max. Pull Tension: 142.5 lbs (64.64 kg)
  • Bulk Cable Weight: 52 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor
  • AWM Compliance: AWM 2937
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

History

  • Update and Revision: Revision Number: 0.197 Revision Date: 09-07-2025

Resources

Belden 8458MN Product Information
