Description

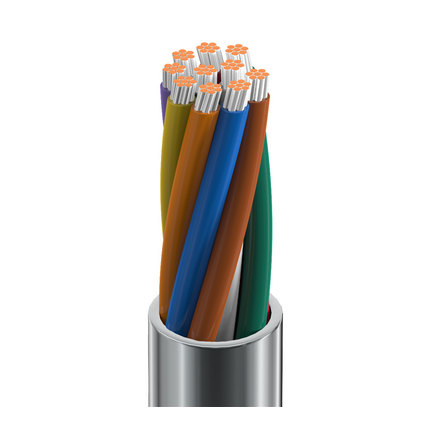

Belden 8456 0605000 Electronic, 10 C #22 Str TC, PVC Ins, PVC Jkt, CMG
Electronic, 10 Conductor 22AWG (7x30) Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG
Ordering Details
- Manufacturer Part Number: 8456 0605000
- Color: Chrome
- Length: 5,000 ft
- Put-Up: Reel
- UPC/EAN: 612825207962
Supplied as one 5,000 ft Reel.
Product Overview
- Suitable Applications: low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring
Construction Details
- Element: Conductor(s); No. of Elements: 10; Size: 22 AWG; Stranding: 7x30; Material: TC - Tinned Copper
- Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.011 in (0.28 mm); Nom. Insulation Diameter: 0.050 in (1.3 mm); Color Code: Black, White, Red, Green, Brown, Blue, Orange, Yellow, Purple, Gray
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.032 in (0.81 mm); Nom. Diameter: 0.264 in (6.71 mm)
- Overall Cable Diameter (Nominal): 0.264 in (6.71 mm)
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 18 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 34 pF/ft (110 pF/m); Nom. Inductance: 0.17 µH/ft (0.56 µH/m); Max. Current: 4.2 Amps per Conductor at 30ºC
- UL Voltage Rating: 150 V (CMG), 150 V (UL AWM 2576)
Mechanical Characteristics
- UL Temperature: 80°C; Operating: -20°C to +80°C
- Stationary Min.: 2.6 in (66 mm); Installation Min.: 2.6 in (66 mm)
- Max. Pull Tension: 91 lbs (41 kg)
- Bulk Cable Weight: 41 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor
- Flammability / Reaction to Fire: UL 1685 FT4 Loading, FT4, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 800, CMG
- AWM Compliance: AWM 2576
- CEC / C(UL) Compliance: CMG
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.513 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
