Description
Belden 8454 010100 Portable Cordage, 4 C #18 Str TC, EPDM Ins, Rubber Jkt, UL AWM 4097
Portable Cordage, 4 Conductor 18AWG (41x34) Tinned Copper, EPDM Insulation, Rubber Outer Jacket, UL AWM 4097
Ordering Details
- Manufacturer Part Number: 8454 010100
- Color: Black
- Length: 100 ft
- Put-Up: Reel
- UPC/EAN: 612825207856
Supplied as one 100 ft Reel.

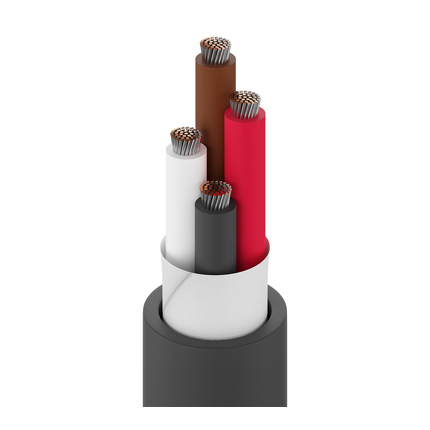

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Junior light-duty vacuum cord(300V), Other light-duty equipements
Construction Details
- Element: Conductor(s); No. of Elements: 4; Size: 18 AWG; Stranding: 41x34; Material: TC - Tinned Copper
- Element: Conductor(s); Material: EPDM - Ethylene Propylene Diene Monomer; Nom. Thickness: 0.018 in (0.46 mm); Nom. Insulation Diameter: 0.083 in (2.1 mm); Color Code: Black, White, Brown, Red
- Separator: Paper Tape; Material: SBR - Styrene Butadiene Rubber; Nom. Thickness: 0.036 in (0.91 mm); Nom. Diameter: 0.265 in (6.73 mm)
- Overall Cable Diameter (Nominal): 0.265 in (6.73 mm)
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 7.3 Ohm/1000ft; Max. Current: 8 Amps per Conductor at 25ºC (5.6 Amps over 50 ft)
- UL Voltage Rating: 300 V
- Voltage Rating Table Notes: Dielectric Withstand Voltage: 1500 V AC Applied for 1 Min.
Mechanical Characteristics
- UL Temperature: 60°C; Operating: -40°C to +60°C
- Stationary Min.: 2.7 in (69 mm); Installation Min.: 2.7 in (69 mm)
- Max. Pull Tension: 82 lbs (37 kg)
- Bulk Cable Weight: 50 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor
- NEC / UL Compliance: Article 400
- AWM Compliance: AWM 4097
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.514 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
