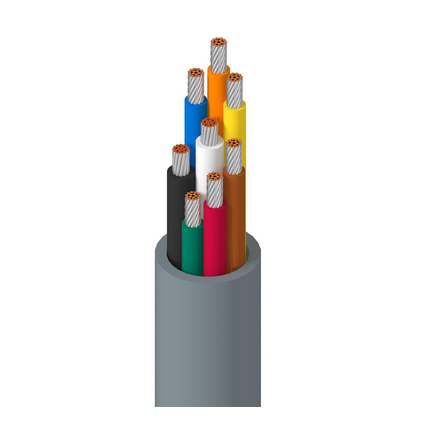

Belden 8448 060500 Electronic, 8 C #18+22 Str TC, PVC Ins, PVC Jkt, CMG
Electronic, 8 Conductor 18+22AWG (16x30+7x30) Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG
Ordering Details
- Manufacturer Part Number: 8448 060500
- Color: Chrome
- Length: 500 ft
- Put-Up: Reel
- UPC/EAN: 612825207597
- Manufacturer Footnote: C
Supplied as one 500 ft Reel.
Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; panel wiring
Construction Details
- Element: Conductor(s); No. of Elements: 2; Size: 18 AWG; Stranding: 19x30; Material: TC - Tinned Copper
- Element: Conductor(s); No. of Elements: 6; Size: 22 AWG; Stranding: 7x30; Material: TC - Tinned Copper
- Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.018 in (0.46 mm); Nom. Insulation Diameter: 0.080 in mm; Color Code: Black, White
- Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.011 in (0.28 mm); Color Code: Red, Green, Brown, Blue, Yellow, Orange
- Material: No Shield
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.032 in (0.81 mm); Nom. Diameter: 0.259 in
- Overall Cable Diameter (Nominal): 0.259 in
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 7.0 Ohm/1000ft; Max. Current: 14 Amps per Conductor at 25°C (18 AWG)
- Element: Conductor(s); Nom. Conductor DCR: 17.8 Ohm/1000ft (58.4 Ohm/km); Max. Current: 4 Amps per Conductor at 25ºC (22 AWG)
- UL Voltage Rating: 300 V (CMG), 150 V (AWM 2576)
Mechanical Characteristics
- UL Temperature: 80°C; Operating: -20°C To +80°C
- Stationary Min.: 2.59 in (65.8 mm); Installation Min.: 2.59 in
- Max. Pull Tension: 96 lbs (44 kg)
- Bulk Cable Weight: 47 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Sunlight Resistance
- Flammability / Reaction to Fire: UL 1685 FT4 loading, FT4
- NEC / UL Compliance: Article 800, CMG
- AWM Compliance: AWM 2576
- CEC / C(UL) Compliance: CMG
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.394 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
