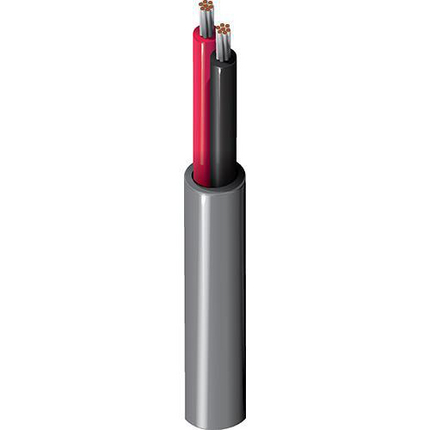

Belden 8442 060100 Electronic, 2 C #22 Str TC, PVC Ins, PVC Jkt, CMG
Electronic, 2 Conductor 22AWG (7x30) Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG
Ordering Details
- Manufacturer Part Number: 8442 060100
- Color: Chrome
- Length: 100 ft
- Put-Up: Reel
- UPC/EAN: 612825207238
Supplied as one 100 ft Reel.
Product Overview
- Suitable Applications: low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring
Construction Details
- Element: Conductor(s); No. of Elements: 2; Size: 22 AWG; Stranding: 7x30; Material: TC - Tinned Copper
- Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.016 in (0.41 mm); Nom. Insulation Diameter: 0.060 in (1.5 mm); Color Code: Black, Red
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.025 in (0.64 mm); Nom. Diameter: 0.170 in (4.32 mm)
- Overall Cable Diameter (Nominal): 0.170 in (4.32 mm)
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 17.8 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 30 pF/ft (98 pF/m); Nom. Inductance: 0.2 µH/ft (0.66 µH/m); Max. Current: 2.9 Amps per Conductor at 25ºC
- UL Voltage Rating: 300 V
Mechanical Characteristics
- UL Temperature: 80°C; Operating: -20°C to +80°C
- Stationary Min.: 1.7 in (43 mm); Installation Min.: 1.7 in (43 mm)
- Max. Pull Tension: 18 lbs (8.2 kg)
- Bulk Cable Weight: 14 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor
- Flammability / Reaction to Fire: UL 1685 FT4 Loading, FT4, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca; CPR UKCA Class: Eca
- NEC / UL Compliance: Article 800, CMG
- CEC / C(UL) Compliance: CMG
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- Plenum Number: 88442, 82442
History
- Update and Revision: Revision Number: 0.518 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP., Y - FINAL PUT-UP LENGTH MAY VAR -10% TO +20% FROM LENGTH SHOWN. MAY CONTAIN 2 PIECES. MINIMUM LENGTH OF ANY ONE PIECE IS 1500'., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
