Belden 8426 010100 Microphone Cable, 6 C #20 Str TC, Rayon & 85% TC Braid, Cotton Serve, EPDM Jkt, Flexible
Microphone Cable, 6 Conductor 20 AWG (26 x 34) Tinned Copper (High Conductivity), EPDM Insulation, Rayon® Braid, 85% Tinned Copper Braid Shield, Cotton Serve, EPDM Jacket, Flexible
Ordering Details
- Manufacturer Part Number: 8426 010100
- Color: Black
- Length: 100 ft
- Put-Up: Reel
- UPC/EAN: 612825206835
Supplied as one 100 ft Reel.

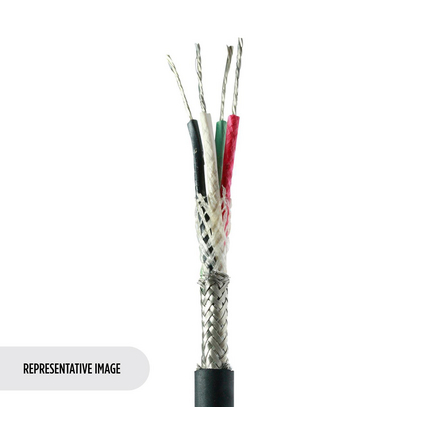

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Ruggedized, deployable microphone for studio or live performance; Balanced analog audio
Construction Details
- Element: Conductor(s); No. of Elements: 6; Size: 20 AWG; Stranding: 26x34; Material: TC - Tinned Copper (High Conductivity)
- Element: Conductor(s); Material: EPDM - Ethylene Propylene Diene Monomer; Nom. Thickness: 0.023 in (0.58 mm); Nom. Insulation Diameter: 0.083 in (2.1 mm); Color Code: Black, White, Brown, Green, Red, Blue
- Shield Type: Braid; Material: Rayon®; Coverage: 85%
- Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 85%
- Separator: Cotton Serve; Material: EPDM - Ethylene Propylene Diene Monomer; Nom. Thickness: 0.037 in (0.94 mm); Nom. Diameter: 0.342 in (8.69 mm)
- Overall Cable Diameter (Nominal): 0.342 in (8.69 mm)
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 10.2 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 30 pF/ft (98 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 55 pF/ft (180 pF/m); Nom. Characteristic Impedence: 52 Ohm; Nom. Inductance: 0.18 µH/ft (0.59 µH/m); Max. Current: 2.8 Amps per Conductor at 25ºC
- Nom Outer Shield DCR: 2.2 Ohm/1000ft (7.2 Ohm/km)
- Voltage Rating: 600 V
Mechanical Characteristics
- Operating: -50°C to +90°C
- Stationary Min.: 3.4 in (86 mm); Installation Min.: 3.4 in (86 mm)
- Max. Pull Tension: 130 lbs (59 kg)
- Bulk Cable Weight: 82 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.491 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
