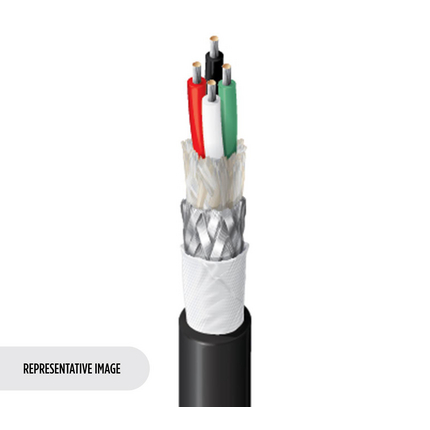

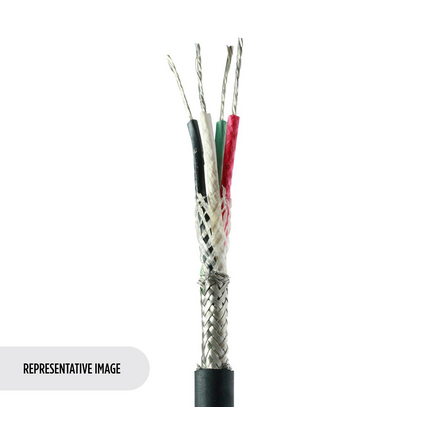

Belden 8407 010250 Microphone Cable, Star Quad, 4 C #16 Str TC, Rayon & 85% TC Braid, Cotton Serve, CPE Jkt
Microphone Cable, Star Quad, 4 Conductor 16 AWG (65 x 34) Tinned Copper (High conductivity), EPDM Insulation, Rayon® Braid, 85% Tinned Copper Braid Shield, Cotton Serve, CPE Jacket
Ordering Details
- Manufacturer Part Number: 8407 010250
- Color: Black
- Length: 250 ft
- Put-Up: Reel
- UPC/EAN: 612825206279
- Manufacturer Footnote: C
Supplied as one 250 ft Reel.
Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Low frequency microphone or musical instruments; Balanced analog audio; Low Noise for high-EMI environments
Construction Details
- Element: Conductor(s); No. of Elements: 4; Size: 16 AWG; Stranding: 65x34; Material: TC - Tinned Copper (High Conductivity)
- Element: Conductor(s); Material: EPDM - Ethylene Propylene Diene Monomer; Nom. Thickness: 0.031 in (0.79 mm); Nom. Insulation Diameter: 0.12 in (3.0 mm); Color Code: Black, White, Red, Green
- Shield Type: Braid; Material: Rayon®; Coverage: 20%
- Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 85%
- Separator: Cotton Serve; Material: CPE - Chlorinated Polyethylene; Nom. Thickness: 0.043 in (1.1 mm); Nom. Diameter: 0.416 in (10.6 mm)
- Overall Cable Diameter (Nominal): 0.416 in (10.6 mm)
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 4 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 30 pF/ft (98 pF/m); Nom. Characteristic Impedence: 44 Ohm; Nom. Velocity of Prop.: 52%; Max. Current: 5.6 Amps per conductor at 25°C
- Nom Outer Shield DCR: 2.63 Ohm/1000ft (8.63 Ohm/km)
- Voltage Rating: 600 V
Mechanical Characteristics
- Operating: -30°C to +60°C
- Stationary Min.: 4.1 in (100 mm); Installation Min.: 4.1 in (100 mm)
- Max. Pull Tension: 162 lbs (73.5 kg)
- Bulk Cable Weight: 111 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
- Flammability / Reaction to Fire: VW-1
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
Product Notes
- Notes: Quad connection scheme: The black and red wires (or wires directly opposite one another) are connected together to form one conductor, and similarly the white and green wires (or remaining wires) are connected together to form the second conductor.
History
- Update and Revision: Revision Number: 0.510 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
