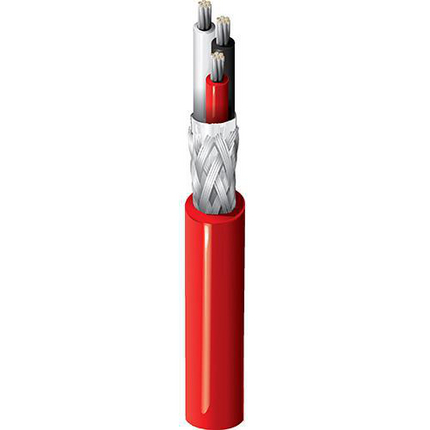

Belden 83806 002100 Electronic, 6 C #12 Str TC, FEP Ins, OS+TC Brd, Red FEP Jkt, CMP FPLP - Red, 100 ft Reel

$6,200.99
SKU:
83806 002100
Shipping:
Calculated at Checkout
Color:
Red
Length:
100 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
83806
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 83806 002100 Electronic, 6 C #12 Str TC, FEP Ins, OS+TC Brd, Red FEP Jkt, CMP FPLP

High Temperature Electronic, 6 Conductor 12AWG (7x20) Tinned Copper, FEP Insulation, Overall Beldfoil®+Tinned Copper Braid(85%) Shield, Red FEP Outer Jacket, CMP FPLP

Ordering Details

  • Manufacturer Part Number: 83806 002100
  • Color: Red
  • Length: 100 ft
  • Put-Up: Reel
  • UPC/EAN: 612825205807
  • Manufacturer Footnote: C

Supplied as one 100 ft Reel.

Product Overview

  • Suitable Applications: fire alarms; extreme high/low temperature environments; indoor/outdoor applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …)

Construction Details

  • Element: Conductor(s); No. of Elements: 6; Size: 12 AWG; Stranding: 7x20; Material: TC - Tinned Copper
  • Element: Conductor(s); Material: FEP - Fluorinated Ethylene Propylene; Nom. Thickness: 0.016 in (0.41 mm); Nom. Insulation Diameter: 0.123 in (3.12 mm); Color Code: Black, White, Red, Green, Orange, Blue
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
  • Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 85%
  • Material: FEP - Fluorinated Ethylene Propylene; Nom. Thickness: 0.020 in (0.51 mm); Nom. Diameter: 0.436 in (11.1 mm)
  • Overall Cable Diameter (Nominal): 0.436 in (11.1 mm)

Electrical Characteristics

  • Element: Conductor(s); Nom. Conductor DCR: 1.74 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 32 pF/ft (100 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 55 pF/ft (180 pF/m); Max. Current: 17 Amps per Conductor at 25ºC
  • Nom Outer Shield DCR: 3.05 Ohm/1000ft (10.0 Ohm/km)
  • UL Voltage Rating: 300 V

Mechanical Characteristics

  • UL Temperature: 200°C; Operating: -70°C to +200°C
  • Stationary Min.: 4.3 in (110 mm); Installation Min.: 4.3 in (110 mm)
  • Max. Pull Tension: 587 lbs (266 kg)
  • Bulk Cable Weight: 197 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor, Outdoor, Oil Resistance, Burial
  • Flammability / Reaction to Fire: NFPA 262 (UL 910), FT6, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 760, Article 800
  • CEC / C(UL) Compliance: CMP
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

  • Notes: Gas Resistant

History

  • Update and Revision: Revision Number: 0.516 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.
