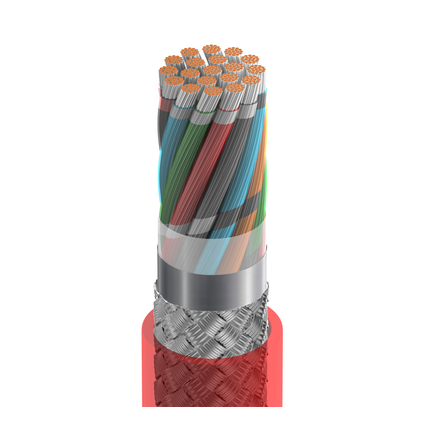

Belden 83719 002500 Electronic, 19 C #16 Str TC, FEP Ins, OS+TC Brd, FEP Jkt, CMP - Red, 500 ft Reel

$35,819.99
SKU:
83719 002500
Shipping:
Calculated at Checkout
Color:
Red
Length:
500 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
83719
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 83719 002500 Electronic, 19 C #16 Str TC, FEP Ins, OS+TC Brd, FEP Jkt, CMP

High Temperature Electronic, 19 Conductor 16AWG (19x29) Tinned Copper, FEP Insulation, Overall Beldfoil®+Tinned Copper Braid(85%) Shield, FEP Outer Jacket, CMP

Ordering Details

  • Manufacturer Part Number: 83719 002500
  • Color: Red
  • Length: 500 ft
  • Put-Up: Reel
  • UPC/EAN: 612825205654
  • Manufacturer Footnote: C

Supplied as one 500 ft Reel.

Product Overview

  • Suitable Applications: extreme high/low temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring

Construction Details

  • Element: Conductor(s); No. of Elements: 19; Size: 16 AWG; Stranding: 19x29; Material: TC - Tinned Copper
  • Element: Conductor(s); Material: FEP - Fluorinated Ethylene Propylene; Nom. Thickness: 0.007 in (0.18 mm); Nom. Insulation Diameter: 0.069 in (1.8 mm); Color Code: Black, White, Red, Green, Orange, Blue, White/Black Stripe, Red/Black Stripe, Green/Black Stripe, Orange/Black Stripe, Blue/Black Stripe, Black/White Stripe, Red/White Stripe, Green/White Stripe, Blue/White Stripe, Black/Red Stripe, White/Red Stripe, Orange/Red Stripe, Blue/Red Stripe
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
  • Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 85%
  • Material: FEP - Fluorinated Ethylene Propylene; Nom. Thickness: 0.025 in (0.64 mm); Nom. Diameter: 0.425 in (10.8 mm)
  • Overall Cable Diameter (Nominal): 0.425 in (10.8 mm)

Electrical Characteristics

  • Element: Conductor(s); Nom. Conductor DCR: 4.43 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 35 pF/ft (110 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 63 pF/ft (210 pF/m); Max. Current: 3.2 Amps per Conductor at 25ºC
  • Nom Outer Shield DCR: 2.67 Ohm/1000ft (8.76 Ohm/km)
  • UL Voltage Rating: 300 V

Mechanical Characteristics

  • UL Temperature: 150°C; Operating: -70°C to +200°C
  • Stationary Min.: 4.0 in (100 mm); Installation Min.: 4.0 in (100 mm)
  • Max. Pull Tension: 834 lbs (378 kg)
  • Bulk Cable Weight: 218 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor, Outdoor, Oil Resistance, Burial
  • Sustainability: CA Prop 65
  • Flammability / Reaction to Fire: NFPA 262 (UL 910), FT6, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 800, CMP
  • CEC / C(UL) Compliance: CMP
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

  • Notes: Gas Resistant

History

  • Update and Revision: Revision Number: 0.514 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.
