Belden 83706 002100 Electronic, 6 C #16 Str TC, FEP Ins, OS+TC Brd, FEP Jkt, CMP

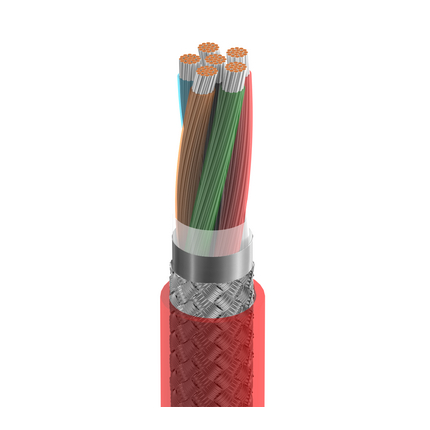

High Temperature Electronic, 6 Conductor 16AWG (19x29) Tinned Copper, FEP Insulation, Overall Beldfoil®+Tinned Copper Braid(85%) Shield, FEP Outer Jacket, CMP
Ordering Details
- Manufacturer Part Number: 83706 002100
- Color: Red
- Length: 100 ft
- Put-Up: Reel
- UPC/EAN: 612825205555
Supplied as one 100 ft Reel.
Product Overview
- Suitable Applications: extreme high/low temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring
Construction Details
- Element: Conductor(s); No. of Elements: 6; Size: 16 AWG; Stranding: 19x29; Material: TC - Tinned Copper
- Element: Conductor(s); Material: FEP - Fluorinated Ethylene Propylene; Nom. Thickness: 0.007 in (0.18 mm); Nom. Insulation Diameter: 0.069 in (1.8 mm); Color Code: Black, White, Red, Green, Orange, Blue
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
- Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 85%
- Material: FEP - Fluorinated Ethylene Propylene; Nom. Thickness: 0.014 in (0.36 mm); Nom. Diameter: 0.265 in (6.73 mm)
- Overall Cable Diameter (Nominal): 0.265 in (6.73 mm)
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 4.43 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 35 pF/ft (110 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 63 pF/ft (210 pF/m); Max. Current: 4.5 Amps per Conductor at 25ºC
- Nom Outer Shield DCR: 3.7 Ohm/1000ft (12 Ohm/km)
- UL Voltage Rating: 300 V
Mechanical Characteristics
- UL Temperature: 150°C; Operating: -70°C to +200°C
- Stationary Min.: 2.7 in (69 mm); Installation Min.: 2.7 in (69 mm)
- Max. Pull Tension: 292 lbs (132 kg)
- Bulk Cable Weight: 82 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor, Outdoor, Oil Resistance, Burial
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: NFPA 262 (UL 910), FT6, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 800, CMP
- CEC / C(UL) Compliance: CMP
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
Product Notes
- Notes: Gas Resistant
History
- Update and Revision: Revision Number: 0.516 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
