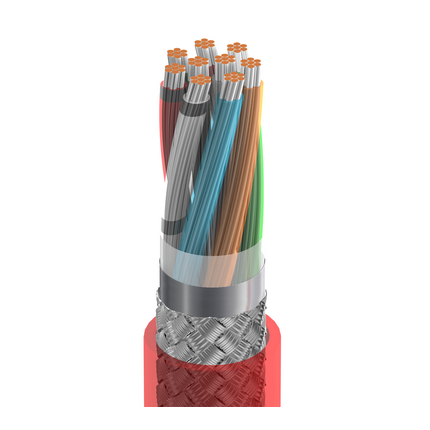

Belden 83609 002100 Electronic, 9 C #20 Str TC, FEP Ins, OS+TC Brd, FEP Jkt, CMP - Red, 100 ft Reel

$3,076.99
SKU:
83609 002100
Shipping:
Calculated at Checkout
Color:
Red
Length:
100 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
83609
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 83609 002100 Electronic, 9 C #20 Str TC, FEP Ins, OS+TC Brd, FEP Jkt, CMP

High Temperature Electronic, 9 Conductor 20AWG (7x28) Tinned Copper, FEP Insulation, Overall Beldfoil®+Tinned Copper Braid(85%) Shield, FEP Outer Jacket, CMP

Ordering Details

  • Manufacturer Part Number: 83609 002100
  • Color: Red
  • Length: 100 ft
  • Put-Up: Reel
  • UPC/EAN: 612825205173
  • Manufacturer Footnote: C

Supplied as one 100 ft Reel.

Product Overview

  • Suitable Applications: extreme high/low temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring

Construction Details

  • Element: Conductor(s); No. of Elements: 9; Size: 20 AWG; Stranding: 7x28; Material: TC - Tinned Copper
  • Element: Conductor(s); Material: FEP - Fluorinated Ethylene Propylene; Nom. Thickness: 0.006 in (0.15 mm); Nom. Insulation Diameter: 0.050 in (1.3 mm); Color Code: Black, White, Red, Green, Orange, Blue, White/Black Stripe, Red/Black Stripe, Green/Black Stripe
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
  • Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 85%
  • Material: FEP - Fluorinated Ethylene Propylene; Nom. Thickness: 0.014 in (0.36 mm); Nom. Diameter: 0.238 in (6.05 mm)
  • Overall Cable Diameter (Nominal): 0.238 in (6.05 mm)

Electrical Characteristics

  • Element: Conductor(s); Nom. Conductor DCR: 11.2 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 26 pF/ft (85 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 51 pF/ft (170 pF/m); Max. Current: 2.7 Amps per Conductor at 25ºC
  • Nom Outer Shield DCR: 1.9 Ohm/1000ft (6.2 Ohm/km)
  • UL Voltage Rating: 300 V (CMP)

Mechanical Characteristics

  • UL Temperature: 150°C; Operating: -70°C to +200°C
  • Stationary Min.: 2.38 in (60.5 mm); Installation Min.: 2.38 in (60.5 mm)
  • Max. Pull Tension: 113.4 lbs (51.44 kg)
  • Bulk Cable Weight: 60 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor - Plenum, Indoor, Outdoor, Sunlight Resistance, Oil Resistance
  • Sustainability: CA Prop 65
  • Flammability / Reaction to Fire: NFPA 262, UL 910 (Plenum), FT6
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 800, CMP
  • CEC / C(UL) Compliance: CMP
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

  • Notes: Gas Resistant

History

  • Update and Revision: Revision Number: 0.513 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.
