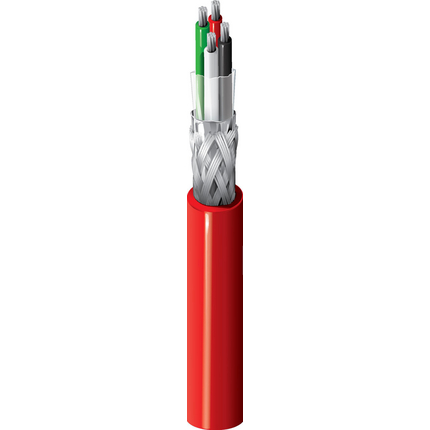

Belden 83554 002500 Electronic, 4 C #22 Str TC, FEP Ins, OS+TC Brd, FEP Jkt, CMP
High Temperature Electronic, 4 Conductor 22AWG (7x30) Tinned Copper, FEP Insulation, Overall Beldfoil®+Tinned Copper Braid(85%) Shield, FEP Outer Jacket, CMP
Ordering Details
- Manufacturer Part Number: 83554 002500
- Color: Red
- Length: 500 ft
- Put-Up: Reel
- UPC/EAN: 612825204978
- Manufacturer Footnote: C
Supplied as one 500 ft Reel.
Product Overview
- Suitable Applications: extreme high/low temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring
Construction Details
- Element: Conductor(s); No. of Elements: 4; Size: 22 AWG; Stranding: 7x30; Material: TC - Tinned Copper
- Element: Conductor(s); Material: FEP - Fluorinated Ethylene Propylene; Nom. Thickness: 0.0065 in (0.17 mm); Nom. Insulation Diameter: 0.042 in (1.1 mm); Color Code: Black, White, Red, Green
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
- Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 85%
- Separator: Polyester Tape; Material: FEP - Fluorinated Ethylene Propylene; Nom. Thickness: 0.015 in (0.38 mm); Nom. Diameter: 0.161 in (4.09 mm)
- Overall Cable Diameter (Nominal): 0.161 in (4.09 mm)
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 15.5 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 23 pF/ft (75 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 40 pF/ft (130 pF/m); Max. Current: 2.2 Amps per Conductor at 25ºC
- Nom Outer Shield DCR: 17.8 Ohm/1000ft (58.4 Ohm/km)
- UL Voltage Rating: 300 V (CMP)
Mechanical Characteristics
- UL Temperature: 150°C; Operating: -70°C to +200°C
- Stationary Min.: 1.61 in (40.9 mm); Installation Min.: 1.61 in (40.9 mm)
- Max. Pull Tension: 36 lbs (16 kg)
- Bulk Cable Weight: 25 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor - Plenum, Indoor, Outdoor, Sunlight Resistance, Oil Resistance
- Flammability / Reaction to Fire: NFPA 262, UL 910 (Plenum), FT6
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 800, CMP
- CEC / C(UL) Compliance: CMP
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
Product Notes
- Notes: Gas Resistant
History
- Update and Revision: Revision Number: 0.512 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
