Description

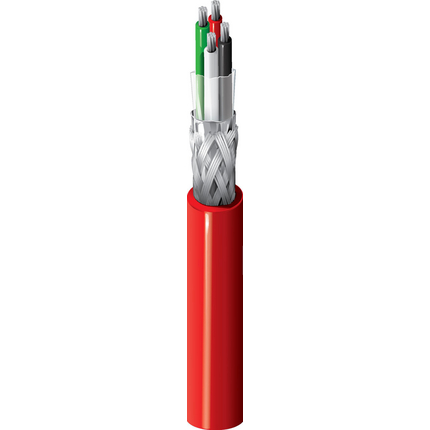

Belden 83504 002500 Electronic, 4 C #24 Str TC, FEP Ins, OS+TC Brd, FEP Jkt, CMP
High Temperature Electronic, 4 Conductor 24AWG (7x32) Tinned Copper, FEP Insulation, Overall Beldfoil®+Tinned Copper Braid(85%) Shield, FEP Outer Jacket, CMP
Ordering Details
- Manufacturer Part Number: 83504 002500
- Color: Red
- Length: 500 ft
- Put-Up: Reel
- UPC/EAN: 612825204794
- Manufacturer Footnote: C
Supplied as one 500 ft Reel.
Product Overview
- Suitable Applications: extreme high/low temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring
Construction Details
- Element: Conductor(s); No. of Elements: 4; Size: 24 AWG; Stranding: 7x32; Material: TC - Tinned Copper
- Element: Conductor(s); Material: FEP - Fluorinated Ethylene Propylene; Nom. Thickness: 0.006 in (0.15 mm); Nom. Insulation Diameter: 0.036 in (0.91 mm); Color Code: Black, White, Red, Green
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
- Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 85%
- Separator: Polyester Tape; Material: FEP - Fluorinated Ethylene Propylene; Nom. Thickness: 0.015 in (0.38 mm); Nom. Diameter: 0.146 in (3.71 mm)
- Overall Cable Diameter (Nominal): 0.146 in (3.71 mm)
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 24 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 20 pF/ft (66 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 36 pF/ft (120 pF/m); Max. Current: 1.6 Amps per Conductor at 25ºC
- Nom Outer Shield DCR: 28.3 Ohm/1000ft (92.8 Ohm/km)
- UL Voltage Rating: 300 V (CMP)
Mechanical Characteristics
- UL Temperature: 150°C; Operating: -70°C to +200°C
- Stationary Min.: 1.46 in (37.1 mm); Installation Min.: 1.46 in (37.1 mm)
- Max. Pull Tension: 22 lbs (10.0 kg)
- Bulk Cable Weight: 20 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor - Plenum, Indoor, Outdoor, Sunlight Resistance, Oil Resistance
- Flammability / Reaction to Fire: NFPA 262, UL 910 (Plenum), FT6
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 800, CMP
- CEC / C(UL) Compliance: CMP
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
Product Notes
- Notes: Gas Resistant
History
- Update and Revision: Revision Number: 0.511 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
