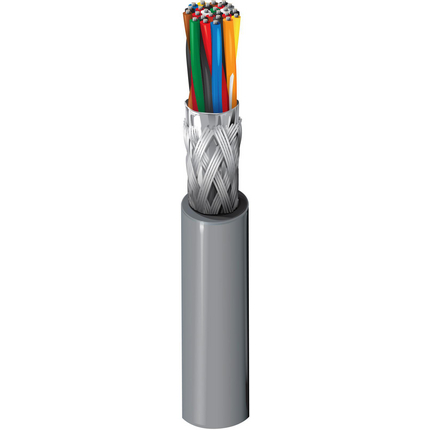

Belden 8345 0601000 RS232, Low Cap, #24-15pr, SR-PVC, O/A Foil+Braid, PVC Jkt, CMG - illustration only; refer to description for cable color and put-up

Belden 8345 0601000 RS232, Low Cap, #24-15pr, SR-PVC, O/A Foil+Braid, PVC Jkt, CMG - Chrome, 1,000 ft Reel

$23,758.99
SKU:
8345 0601000
Shipping:
Calculated at Checkout
Color:
Chrome
Length:
1,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
8345
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 8345 0601000 RS232, Low Cap, #24-15pr, SR-PVC, O/A Foil+Braid, PVC Jkt, CMG

Computer EIA RS-232 Cable, 15-Pair, 24 AWG stranded (7x32) tinned copper conductors, semi-rigid PVC insulation, overall Beldfoil® (100% coverage) + tinned copper braid shield (65% coverage), PVC jacket.

Ordering Details

  • Manufacturer Part Number: 8345 0601000
  • Color: Chrome
  • Length: 1,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825204701
  • Manufacturer Footnote: C

Supplied as one 1,000 ft Reel.

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: RS-232 extended distance applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring

Construction Details

  • Element: Pair(s); No. of Elements: 15; Size: 24 AWG; Stranding: 7x32; Material: TC - Tinned Copper
  • Element: Pair(s); Material: SR-PVC - Polyvinyl Chloride (Semi-Rigid); Nom. Thickness: 0.0105 in (0.267 mm); Color Code: White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe, White/Green Stripe & Green/White Stripe, White/Brown Stripe & Brown/White Stripe, White/Gray Stripe & Gray/White Stripe, Red/Blue Stripe & Blue/Red Stripe, Red/Orange Stripe & Orange/Red Stripe, Red/Green Stripe & Green/Red Stripe, Red/Brown Stripe & Brown/Red Stripe, Red/Gray Stripe & Gray/Red Stripe, Black/Blue Stripe & Blue/Black Stripe, Black/Orange Stripe & Orange/Black Stripe, Black/Green Stripe & Green/Black Stripe, Black/Brown Stripe & Brown/Black Stripe, Black/Gray Stripe & Gray/Black Stripe
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
  • Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 65%
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.040 in (1.0 mm); Nom. Diameter: 0.445 in (11.3 mm)
  • Overall Cable Diameter (Nominal): 0.445 in (11.3 mm)

Electrical Characteristics

  • Element: Pair(s); Nom. Conductor DCR: 24 Ohm/1000ft (79 Ohm/km); Nom. Capacitance Cond-to-Cond: 30 pF/ft (98 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 50 pF/ft (160 pF/m); Nom. Characteristic Impedence: 75 Ohm; Nom. Velocity of Prop.: 60%; Max. Current: 1.1 Amps per Conductor at 25ºC
  • Nom Outer Shield DCR: 3.2 Ohm/1000ft (10 Ohm/km)
  • UL Voltage Rating: 300 V (CMG), 300 V (UL AWM 2464)

Mechanical Characteristics

  • UL Temperature: 80°C (UL AWM 2464); Operating: -30°C to +80°C
  • Max. Pull Tension: 200 lbs (91 kg)
  • Bulk Cable Weight: 113 lbs/1000ft (168 kg/km)

Standards and Compliance

  • Environmental Suitability: Indoor
  • Flammability / Reaction to Fire: UL1685 FT4 Loading
  • NEC / UL Compliance: Article 800, CMG
  • AWM Compliance: AWM 2464, AWM I A
  • CEC / C(UL) Compliance: CMG
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.315 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.

Resources

Belden 8345 Product Information
