Description

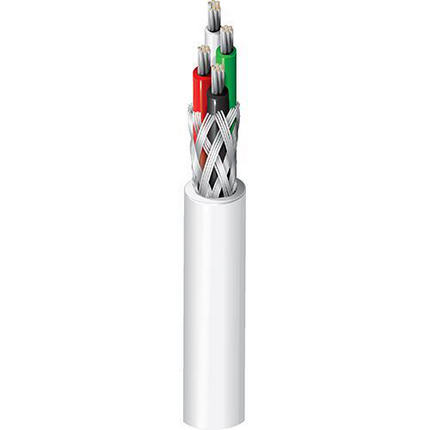

Belden 83349E 009100 Electronic, 4 C #22 Str SPC, TFE Ins, OA SPC Brd, TFE Tape Jkt, MIL-W-16878/4 (Type E)
High Temperature Electronic, 4 Conductor 22AWG (19x34) Silver Plated Copper, TFE Insulation, Overall Silver Plated Copper Braid(85%) Shield, TFE Tape Outer Jacket, MIL-W-16878/4 (Type E)
Ordering Details
- Manufacturer Part Number: 83349E 009100
- Color: White
- UPC/EAN: 612825204374
- Manufacturer Footnote: E
Product Overview
- Suitable Applications: MIL-W-16878/4 (Type E) Spec; Extreme High/Low Temperature Environments; up to 600V analog signals & voltage control
Construction Details
- Element: Conductor(s); No. of Elements: 4; Size: 22 AWG; Stranding: 19x34; Material: SC - Silvered Copper
- Element: Conductor(s); Material: PTFE - Polytetrafluoroethylene; Nom. Thickness: 0.010 in (0.25 mm); Nom. Insulation Diameter: 0.05 in (1.3 mm); Color Code: White, Black, Red, Green
- Shield Type: Braid; Material: Silvered Copper (SC); Coverage: 85%
- Material: PTFE - Polytetrafluoroethylene; Nom. Thickness: 0.011 in (0.28 mm); Nom. Diameter: 0.163 in (4.14 mm)
- Overall Cable Diameter (Nominal): 0.163 in (4.14 mm)
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 14.7 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 27.4 pF/ft (89.9 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 45.7 pF/ft (150 pF/m); Nom. Inductance: 0.158 µH/ft (0.518 µH/m); Max. Current: 5 Amps per conductor at 25°C
- Nom Outer Shield DCR: 8.11 Ohm/1000ft (26.6 Ohm/km)
- Voltage Rating: 600 V
Mechanical Characteristics
- UL Temperature: 200°C; Operating: -65°C to +200°C
- Stationary Min.: 1.63 in (41.4 mm); Installation Min.: 1.63 in (41.4 mm)
- Max. Pull Tension: 38 lbs (17 kg)
- Bulk Cable Weight: 26 lbs/1000ft
Standards and Compliance
- Sustainability: CA Prop 65
- CPR Compliance: CPR Euroclass: Eca
- NEMA Compliance: NEMA HP3
- Military Compliance: MIL-W-16878/4 (Type E except stranding), (insulated conductors)
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
Product Notes
- Notes: Teflon® is a registered trademark of E. I. duPont de Nemours and Co. used under license by Belden, Inc.
History
- Update and Revision: Revision Number: 0.526 Revision Date: 09-07-2025
- Footnote: E - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 25'.
