Description

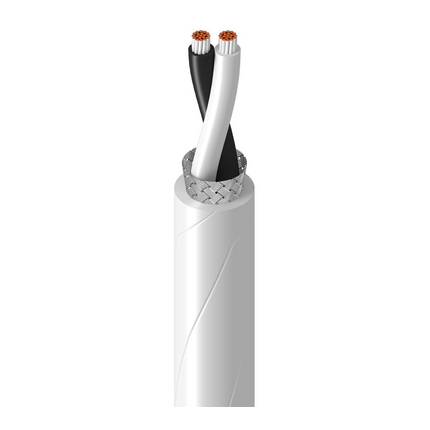

Belden 83317E 009100 Electronic, 2 C #26 Str SPC, TFE Ins, OA SPC Brd, TFE Tape Jkt, MIL-W-16878/4 (Type E)
High Temperature Electronic, 2 Conductor 26AWG (7x34) Silver Plated Copper, TFE Insulation, Overall Silver Plated Copper Braid(85%) Shield, TFE Tape Outer Jacket, MIL-W-16878/4 (Type E)
Ordering Details
- Manufacturer Part Number: 83317E 009100
- Color: White
- Length: 100 ft
- Put-Up: Reel
- UPC/EAN: 612825203926
- Manufacturer Footnote: E
Supplied as one 100 ft Reel.
Product Overview
- Suitable Applications: MIL-W-16878/4 (Type E) Spec; Extreme High/Low Temperature Environments; up to 600V analog signals & voltage control
Construction Details
- Element: Conductor(s); No. of Elements: 2; Size: 26 AWG; Stranding: 7x34; Material: SC - Silvered Copper
- Element: Conductor(s); Material: PTFE - Polytetrafluoroethylene; Nom. Thickness: 0.010 in (0.25 mm); Nom. Insulation Diameter: 0.039 in (0.99 mm); Color Code: White, Black
- Shield Type: Braid; Material: Silvered Copper (SC); Coverage: 85%
- Material: PTFE - Polytetrafluoroethylene; Nom. Thickness: 0.011 in (0.28 mm); Nom. Diameter: 0.121 in (3.07 mm)
- Overall Cable Diameter (Nominal): 0.121 in (3.07 mm)
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 39 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 20.8 pF/ft (68.2 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 35.5 pF/ft (116 pF/m); Nom. Inductance: 0.14 µH/ft (0.46 µH/m); Max. Current: 3 Amps per conductor @ 25°C
- Nom Outer Shield DCR: 7.5 Ohm/1000ft (25 Ohm/km)
- Voltage Rating: 600 V
Mechanical Characteristics
- UL Temperature: 200°C; Operating: -65°C to +200°C
- Stationary Min.: 1.21 in (30.7 mm); Installation Min.: 1.21 in (30.7 mm)
- Max. Pull Tension: 7 lbs (3.2 kg)
- Bulk Cable Weight: 12 lbs/1000ft
Standards and Compliance
- Sustainability: CA Prop 65
- CPR Compliance: CPR Euroclass: Eca; CPR UKCA Class: Eca
- NEMA Compliance: NEMA HP3
- Military Compliance: MIL-W-16878/4 (Type E insulated conductors)
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
Product Notes
- Notes: Teflon® is a registered trademark of E. I. duPont de Nemours and Co. used under license by Belden, Inc.
History
- Update and Revision: Revision Number: 0.533 Revision Date: 09-07-2025
- Footnote: E - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 25'.
