Belden 83308E 009500 Electronic, 1 C #16 Str SPC, TFE Ins, OA SPC Brd, TFE Tape Jkt, MIL-W-16878/4 (Type E) - White, 500 ft Reel

$6,141.99
SKU:
83308E 009500
Shipping:
Calculated at Checkout
Color:
White
Length:
500 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
83308E
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 83308E 009500 Electronic, 1 C #16 Str SPC, TFE Ins, OA SPC Brd, TFE Tape Jkt, MIL-W-16878/4 (Type E)

High Temperature Electronic, 1 Conductor 16AWG (19x29) Silver Plated Copper, TFE Insulation, Overall Silver Plated Copper Braid(85%) Shield, TFE Tape Outer Jacket, MIL-W-16878/4 (Type E)

Ordering Details

  • Manufacturer Part Number: 83308E 009500
  • Color: White
  • Length: 500 ft
  • Put-Up: Reel
  • UPC/EAN: 612825203919
  • Manufacturer Footnote: E

Supplied as one 500 ft Reel.

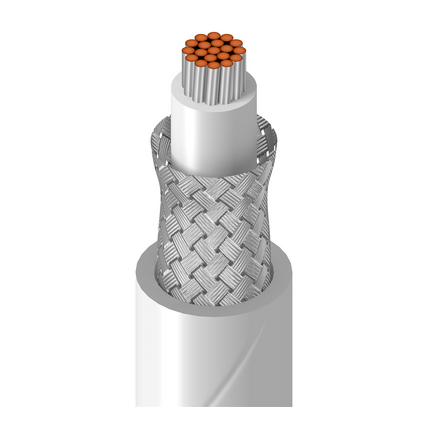

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: MIL-W-16878/4 (Type E) Spec; Extreme High/Low Temperature Environments; up to 600V analog signals & voltage control

Construction Details

  • Element: Conductor(s); No. of Elements: 1; Size: 16 AWG; Stranding: 19x29; Material: SC - Silvered Copper
  • Element: Conductor(s); Material: PTFE - Polytetrafluoroethylene; Nom. Thickness: 0.011 in (0.28 mm); Color Code: White
  • Shield Type: Braid; Material: Silvered Copper (SC); Coverage: 85%
  • Material: PTFE - Polytetrafluoroethylene; Nom. Thickness: 0.011 in (0.28 mm); Nom. Diameter: 0.120 in (3.05 mm)
  • Overall Cable Diameter (Nominal): 0.120 in (3.05 mm)

Electrical Characteristics

  • Element: Conductor(s); Nom. Conductor DCR: 4.4 Ohm/1000ft (14 Ohm/km); Nom. Capacitance Cond-to-Shield: 72.5 pF/ft (238 pF/m); Nom. Inductance: 0.155 µH/ft (0.509 µH/m); Max. Current: 11 Amps per conductor @ 25°C
  • Nom Outer Shield DCR: 8.3 Ohm/1000ft (27 Ohm/km)
  • Voltage Rating: 600 V

Mechanical Characteristics

  • Operating: -65°C to +200°C
  • Max. Pull Tension: 50.2 lbs (22.8 kg)
  • Bulk Cable Weight: 18 lbs/1000ft (27 kg/km)

Standards and Compliance

  • Sustainability: CA Prop 65
  • Flammability / Reaction to Fire: IEC 60332-1-2
  • NEMA Compliance: NEMA HP3
  • Military Compliance: MIL-W-16878/4 (Type E except stranding), (insulated conductors)
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

  • Notes: Teflon« is a registered trademark of E. I. duPont de Nemours and Co. used under license by Belden, Inc.

History

  • Update and Revision: Revision Number: 0.386 Revision Date: 09-07-2025
  • Footnote: E - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 25'.
