Description
Belden 83303E 009500 Electronic, 1 C #26 Str SPC, TFE Ins, OA SPC Brd, TFE Tape Jkt, MIL-W-16878/4 (Type E)
High Temperature Electronic, 1 Conductor 26AWG (7x34) Silver Plated Copper, TFE Insulation, Overall Silver Plated Copper Braid(85%) Shield, TFE Tape Outer Jacket, MIL-W-16878/4 (Type E)
Ordering Details
- Manufacturer Part Number: 83303E 009500
- Color: White
- UPC/EAN: 612825203834
- Manufacturer Footnote: E

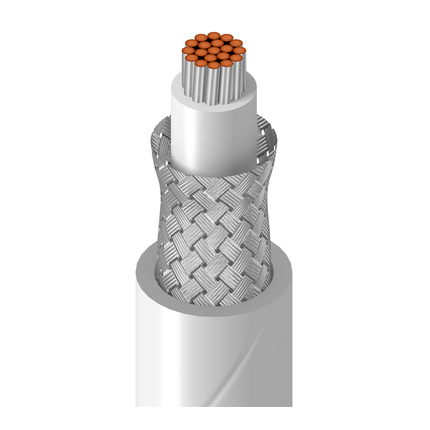

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: MIL-W-16878/4 (Type E) Spec; Extreme High/Low Temperature Environments; up to 600V analog signals & voltage control
Construction Details
- Element: Conductor(s); No. of Elements: 1; Size: 26 AWG; Stranding: 7x34; Material: SC - Silvered Copper
- Element: Conductor(s); Material: PTFE - Polytetrafluoroethylene; Nom. Thickness: 0.010 in (0.25 mm); Color Code: White
- Shield Type: Braid; Material: Silvered Copper (SC); Coverage: 85%
- Material: PTFE - Polytetrafluoroethylene; Nom. Thickness: 0.010 in (0.25 mm); Nom. Diameter: 0.076 in (1.9 mm)
- Overall Cable Diameter (Nominal): 0.076 in (1.9 mm)
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 39 Ohm/1000ft (130 Ohm/km); Nom. Capacitance Cond-to-Shield: 44.6 pF/ft (146 pF/m); Max. Current: 3 Amps per conductor @ 25°C
- Nom Outer Shield DCR: 20 Ohm/1000ft (66 Ohm/km)
- Voltage Rating: 600 V
Mechanical Characteristics
- Operating: -65°C to +200°C
- Max. Pull Tension: 13.1 lbs (5.94 kg)
- Bulk Cable Weight: 6 lbs/1000ft (8.9 kg/km)
Standards and Compliance
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: IEC 60332-1-2
- NEMA Compliance: NEMA HP3
- Military Compliance: MIL-W-16878/4 (Type E insulated conductors)
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
Product Notes
- Notes: Teflon« is a registered trademark of E. I. duPont de Nemours and Co. used under license by Belden, Inc.
History
- Update and Revision: Revision Number: 0.375 Revision Date: 09-07-2025
- Footnote: E - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 25'.
