Belden 83265 009500 Mil-Spec Coax, 50 Ohm, RG-178, 30 AWG Str SCCS, 95% SC Braid, FEP Jkt, Commercial Non-QPL
Mil-Spec Coax, 50 Ohm, RG-178, 30 AWG (7x38) Silvered Copper Covered Steel Conductor, PTFE Insulation, 95% Silvered Copper Braid Shield, FEP Jacket, Commercial, non-QPL
Ordering Details
- Manufacturer Part Number: 83265 009500
- Color: White
- Length: 500 ft
- Put-Up: Reel
- UPC/EAN: 612825203711
- Manufacturer Footnote: E
Supplied as one 500 ft Reel.

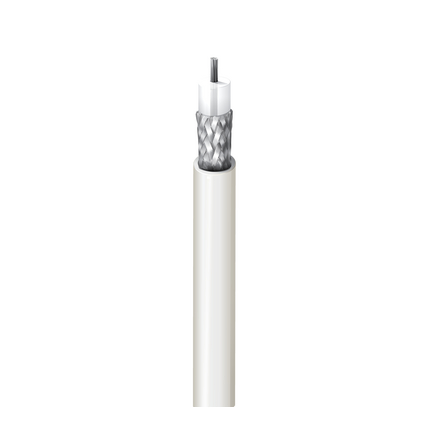

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Aerospace wireless communication
Construction Details
- RG Type: 178
- Size: 30 AWG; Stranding: 7x38; Nom. Diameter: 0.012 in; Material: SCCS - Silvered Copper Covered Steel
- Material: PTFE - Polytetrafluoroethylene; Nom. Insulation Diameter: 0.033 in (0.84 mm); Color Code: White
- Layer: 1; Outer Shield Type: Braid; Material: Silvered Copper (SC); Coverage: 95%
- Material: FEP - Fluorinated Ethylene Propylene; Nom. Diameter: 0.071 in (1.8 mm)
- Overall Cable Diameter (Nominal): 0.071 in (1.8 mm)
Electrical Characteristics
- Frequency: 50 MHz - 1000 MHz; Max. VSWR: per M17/93-RG178
- Frequency: 1 MHz; Nom. Attenuation: 2.6 dB/100ft
- Frequency: 10 MHz; Nom. Attenuation: 5.6 dB/100ft
- Frequency: 50 MHz; Nom. Attenuation: 10.5 dB/100ft
- Frequency: 100 MHz; Nom. Attenuation: 14.0 dB/100ft
- Frequency: 200 MHz; Nom. Attenuation: 19.0 dB/100ft
- Frequency: 400 MHz; Nom. Attenuation: 28.0 dB/100ft
- Frequency: 700 MHz; Nom. Attenuation: 37.0 dB/100ft
- Frequency: 900 MHz; Nom. Attenuation: 42.5 dB/100ft
- Frequency: 1000 MHz; Nom. Attenuation: 46.0 dB/100ft
- Frequency: 50 MHz; Max. Power Rating: 380 W
- Frequency: 100 MHz; Max. Power Rating: 253 W
- Frequency: 200 MHz; Max. Power Rating: 170 W
- Frequency: 400 MHz; Max. Power Rating: 113 W
- Frequency: 700 MHz; Max. Power Rating: 81 W
- Frequency: 900 MHz; Max. Power Rating: 70 W
- Frequency: 1,000 MHz; Max. Power Rating: 66 W
- Nom. Conductor DCR: 232 Ohm/1000ft (761 Ohm/km); Nom. Outer Shield DCR: 14.6 Ohm/1000ft (47.9 Ohm/km); Nom. Capacitance Cond-to-Shield: 29 pF/ft (95 pF/m); Nom. Characteristic Impedance: 50 Ohm; Nom. Velocity of Prop.: 70%
- UL Voltage Rating: 30 V (UL AWM 1637); Voltage Rating: 750 V (Mil-Spec)
Mechanical Characteristics
- UL Temperature: 90°C (UL AWM 1637); Operating: -70°C to +200°C
- Installation Min.: 1 in (25 mm)
- Max. Pull Tension: 12 lbs (5.4 kg)
- Bulk Cable Weight: 5 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Aerial - When supported by messenger wire
- Sustainability: CA Prop 65
- AWM Compliance: AWM 1637
- Military Compliance: Commercial, non-QPL product (M17/93-RG178)
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.506 Revision Date: 02-20-2026
- Footnote: E - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 25'.
