Belden 83264 001100 Mil-Spec Coax, 75 Ohm, RG-179, 30 AWG Str SCCS, 95% SC Braid, FEP Jkt, Commercial Non-QPL - Brown, 100 ft Reel

$484.99
SKU:
83264 001100
Shipping:
Calculated at Checkout
Color:
Brown
Length:
100 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
83264
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 83264 001100 Mil-Spec Coax, 75 Ohm, RG-179, 30 AWG Str SCCS, 95% SC Braid, FEP Jkt, Commercial Non-QPL

Mil-Spec Coax, 75 Ohm, RG-179, 30 AWG (7x38) Silvered Copper Covered Steel Conductor, PTFE Insulation, 95% Silvered Copper Braid Shield, FEP Jacket, Commercial, non-QPL

Ordering Details

  • Manufacturer Part Number: 83264 001100
  • Color: Brown
  • Length: 100 ft
  • Put-Up: Reel
  • UPC/EAN: 612825203667
  • Manufacturer Footnote: E

Supplied as one 100 ft Reel.

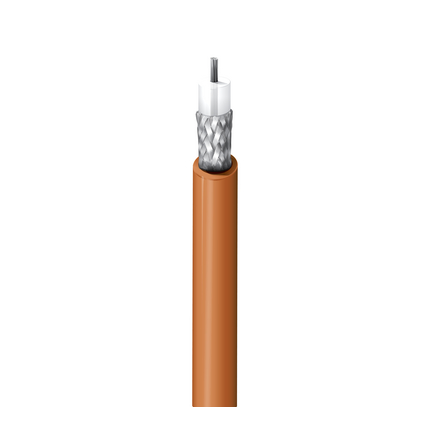

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Aerospace, analog video

Construction Details

  • RG Type: 179
  • Size: 30 AWG; Stranding: 7x38; Nom. Diameter: 0.012 in; Material: SCCS - Silvered Copper Covered Steel
  • Material: PTFE - Polytetrafluoroethylene; Nom. Insulation Diameter: 0.063 in (1.6 mm); Color Code: White
  • Layer: 1; Outer Shield Type: Braid; Material: Silvered Copper (SC); Coverage: 95%
  • Material: FEP - Fluorinated Ethylene Propylene; Nom. Diameter: 0.100 in (2.54 mm)
  • Overall Cable Diameter (Nominal): 0.100 in (2.54 mm)

Electrical Characteristics

  • Frequency: 1 MHz; Nom. Attenuation: 3.0 dB/100ft
  • Frequency: 10 MHz; Nom. Attenuation: 5.3 dB/100ft
  • Frequency: 50 MHz; Nom. Attenuation: 8.5 dB/100ft
  • Frequency: 100 MHz; Nom. Attenuation: 10.0 dB/100ft
  • Frequency: 200 MHz; Nom. Attenuation: 12.5 dB/100ft
  • Frequency: 400 MHz; Nom. Attenuation: 16.0 dB/100ft
  • Frequency: 700 MHz; Nom. Attenuation: 19.7 dB/100ft
  • Frequency: 900 MHz; Nom. Attenuation: 22.3 dB/100ft
  • Frequency: 1000 MHz; Nom. Attenuation: 24.0 dB/100ft
  • Frequency: 50 MHz; Max. Power Rating: 1,250 W
  • Frequency: 100 MHz; Max. Power Rating: 865 W
  • Frequency: 200 MHz; Max. Power Rating: 599 W
  • Frequency: 400 MHz; Max. Power Rating: 415 W
  • Frequency: 700 MHz; Max. Power Rating: 308 W
  • Frequency: 900 MHz; Max. Power Rating: 270 W
  • Frequency: 1,000 MHz; Max. Power Rating: 255 W
  • Nom. Conductor DCR: 232 Ohm/1000ft (761 Ohm/km); Nom. Outer Shield DCR: 8.5 Ohm/1000ft (28 Ohm/km); Nom. Capacitance Cond-to-Shield: 19.5 pF/ft (64.0 pF/m); Nom. Characteristic Impedance: 75 Ohm; Nom. Velocity of Prop.: 70%
  • Voltage Rating: 900 V (Mil-Spec)

Mechanical Characteristics

  • Operating: -70°C to +200°C
  • Installation Min.: 1 in (25 mm)
  • Max. Pull Tension: 17 lbs (7.7 kg)
  • Bulk Cable Weight: 10 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Aerial - When supported by messenger wire
  • Sustainability: CA Prop 65
  • Military Compliance: Commercial, non-QPL product (M17/94-RG179)
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.506 Revision Date: 02-20-2026
  • Footnote: E - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 25'., C - CRATE REEL PUT-UP.
