Description
Belden 83041 010100 Lead Wire, #32 Str SPC, TFE Ins, AWM 1371
High Temp Plastic Lead Wire, 32AWG (7x40) Silver Plated Copper, TFE Insulation, AWM 1371 105C TYPE ET MIL-W-16878/6 250V 200C
Ordering Details
- Manufacturer Part Number: 83041 010100
- Color: Black
- Length: 100 ft
- Put-Up: Reel
- Manufacturer Footnote: E
Supplied as one 100 ft Reel.

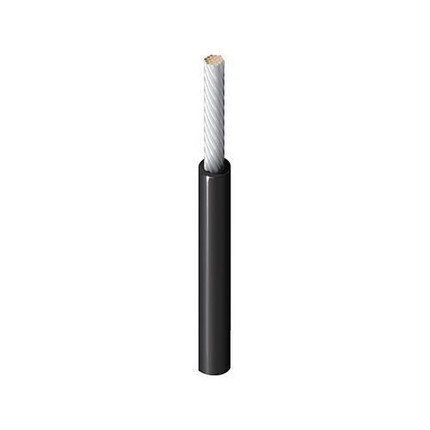

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: high temperature, inter-connection circuits, internal wiring of computer and electronic equipments, (Type ET) MIL-W-16878/6 applications
Construction Details
- Size: 32; Stranding: 7x40; Material: SC - Silvered Copper
- Material: PTFE - Polytetrafluoroethylene; Nom. Thickness: 0.0065 in (0.17 mm)
- Overall Cable Diameter (Nominal): 0.022 in (0.56 mm)
Electrical Characteristics
- UL Voltage Rating: 250 V RMS
Mechanical Characteristics
- UL Temperature: 105°C
- Bulk Cable Weight: 0.500 lbs/1000ft (0.744 kg/km)
Standards and Compliance
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: VW-1
- AWM Compliance: AWM 1371
- Military Compliance: MIL-W-16878/6
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.360 Revision Date: 10-27-2026
- Footnote: E - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 25'.
